Bow shackle

Name: Bow shackle
Brand: Horntools
SKU: HR0001
Price: 2.9 EUR
Availability: InStock
Rating: 5.0 (4 reviews)

2,90€

Tax included. Shipping calculated at checkout

SKU: HR0001

GTIN: 9008683004705

Quantity:

Developed in Austria
5 year guarantee
Free advice

Description

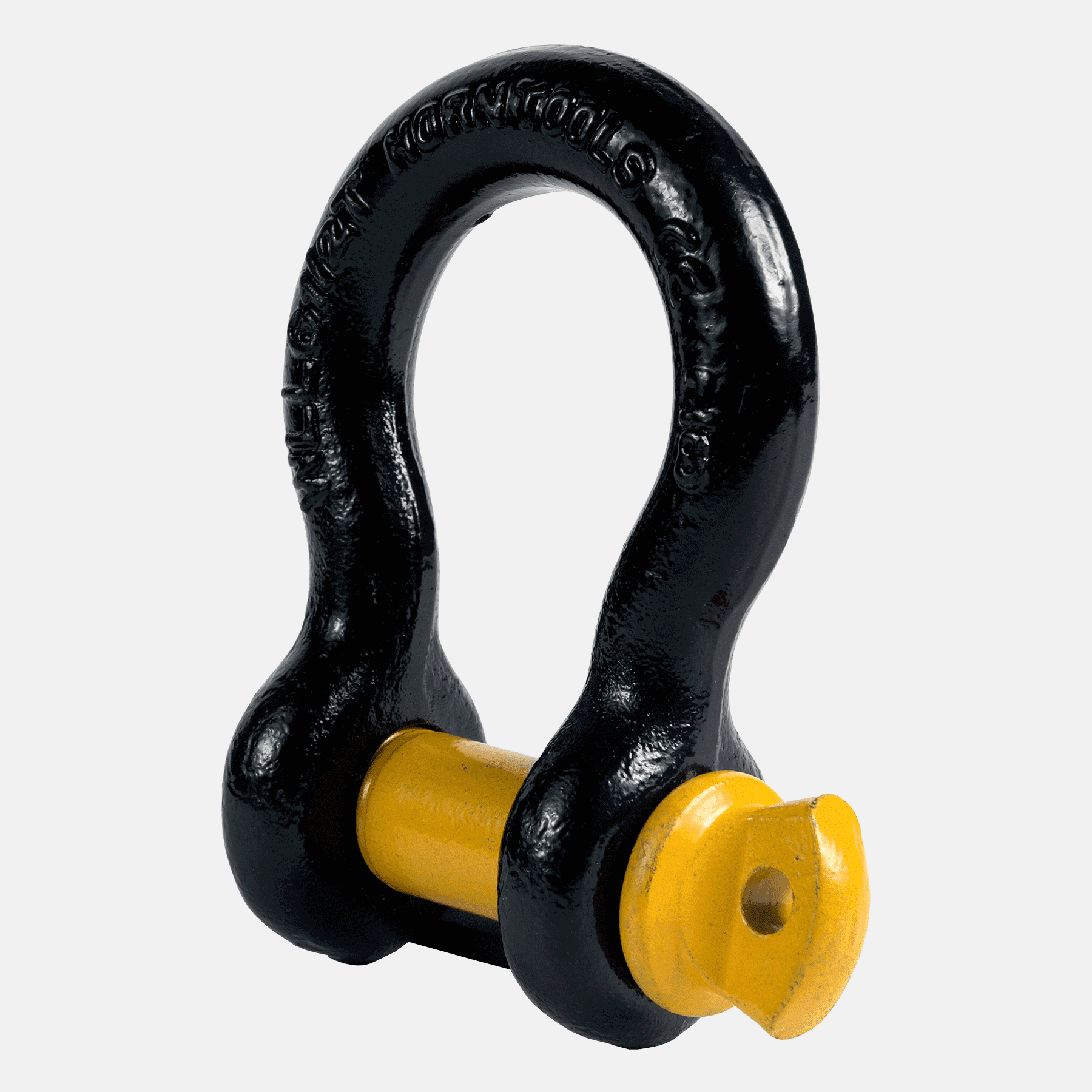

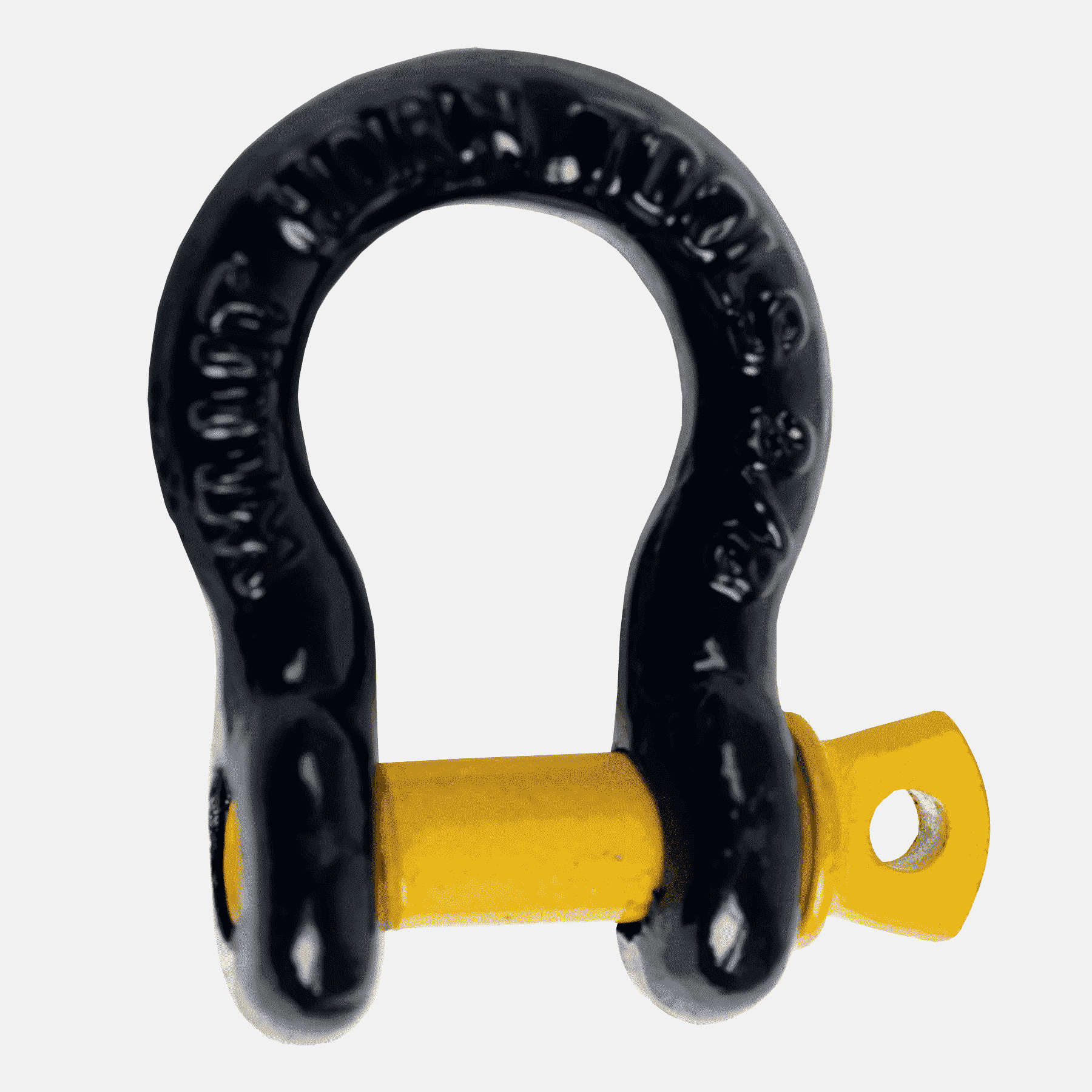

The bow shackle is made of steel and then galvanized. It is also powder-coated for the perfect look.

Safety is always the top priority with our products, which is why our shackles have a breaking load that is 4x higher than the actual working load. This combination of high-quality materials and high safety make our shackles an ideal work tool in every situation.

Technical data

HR0001 / 0.5t:

Bow shackle 1/4" G209 E-galvanized
Own weight: 0.054 kg
4x safety (breaking load = 4x working load)
Working load: 0.5t
Breaking load: 2 t

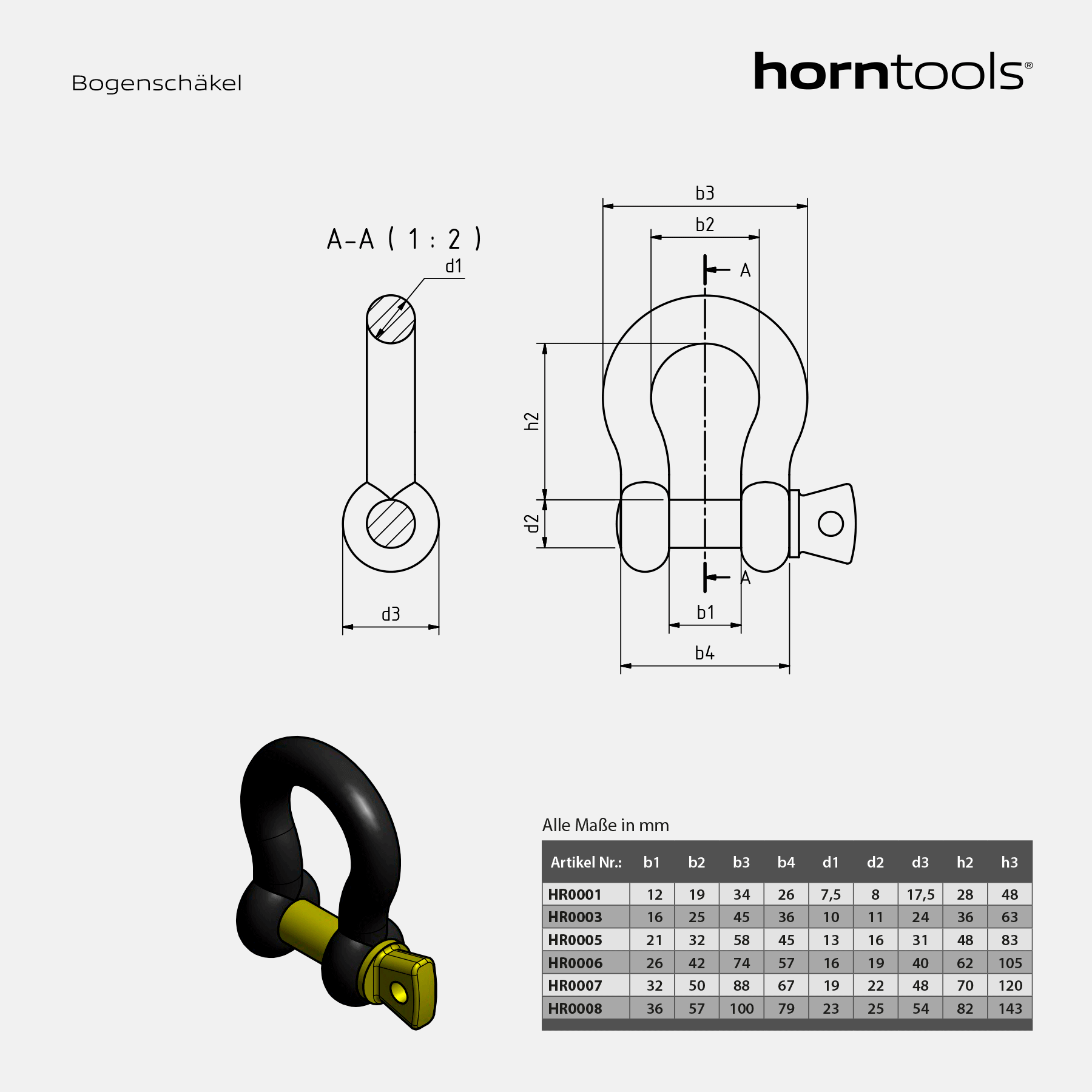

Size: d1:6.5/d2:8/d3:17/b1:12/b2:20/h2:28mm
Material: cast steel GS-45

HR0003/1t:

Bow shackle 3/8" G209 E-galvanized
Weight: 0.14 kg
4x safety (breaking load = 4x working load)
Working load: 1 t
Breaking load: 4 t
Size: d1:10/d2:11/d3:25/b1:18/b2:26/h2: 36mm
Material: cast steel GS-45

HR0005/2t:

Bow shackle 1/2" G209 E-galvanized
Weight: 0.29 kg
4x safety (breaking load = 4x working load)
Working load: 2 t
Breaking load: 8 t
Size: d1:13/d2:16/d3:30/b1:21/b2:33/h2:48mm
Material: cast steel GS-45

HR0006 / 3.25t:

Bow shackle 5/8" G209 E-galvanized
Weight: 0.63 kg
4x safety (breaking load = 4x working load)
Working load: 3.25 t
Breaking load: 13 t
Size: d1:16/d2:19/d3:40/b1:27/b2:43/h2:60mm
Material: cast steel GS-45

HR0007 / 4.75t:

Bow shackle 3/4" G209 E-galvanized
Weight: 1.2 kg
4x safety (breaking load = 4x working load)
Working load: 4.75 t
Breaking load: 19 t
Size: d1:16/d2:22/d3:48/b1:32/b2:51/h2:71mm
Material: cast steel GS-45

HR0008 / 6.5t:

Bow shackle 7/8" G209 E-galvanized
Weight: 1.54 kg
4x safety (breaking load = 4x working load)
Working load: 6.5 tons
Breaking load: 26 t
Size: d1:22/d2:25/d3:54/b1:36/b2:58/h2:84mm
Material: cast steel GS-45

Bow shackle

2,90€
