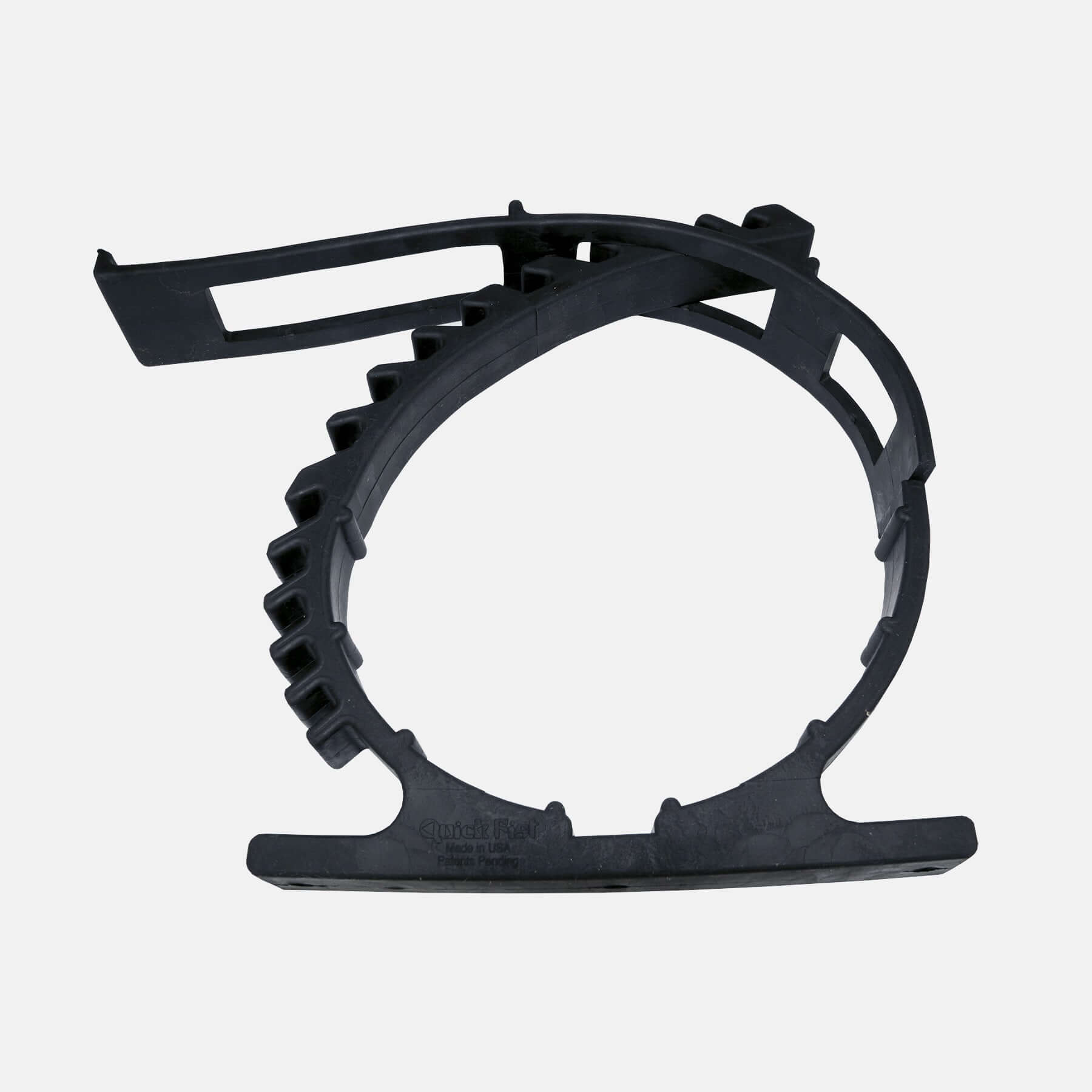

This tool holder is ideal for items with a diameter of 64 - 230 mm. Each bracket has a reliable load capacity of 23 kg. Two holders can therefore carry a load of 45 kg. The tool holders are easy to assemble and the mounting surface of the holder is 152 x 22 mm. The plastic was tested in accordance with AfPS GS 2015:01 PAH and is suitable for long-term skin contact.

Assembly:

Use 3 x M8 screws with normal washer or 3 x M6 screws with large washer and the corresponding washers for assembly. Don't overtighten.

After attaching the SUPER QUICK FIST holder, stretch the strap by placing one hand against the end of the strap and using the other hand to pull straight on the strap several times.

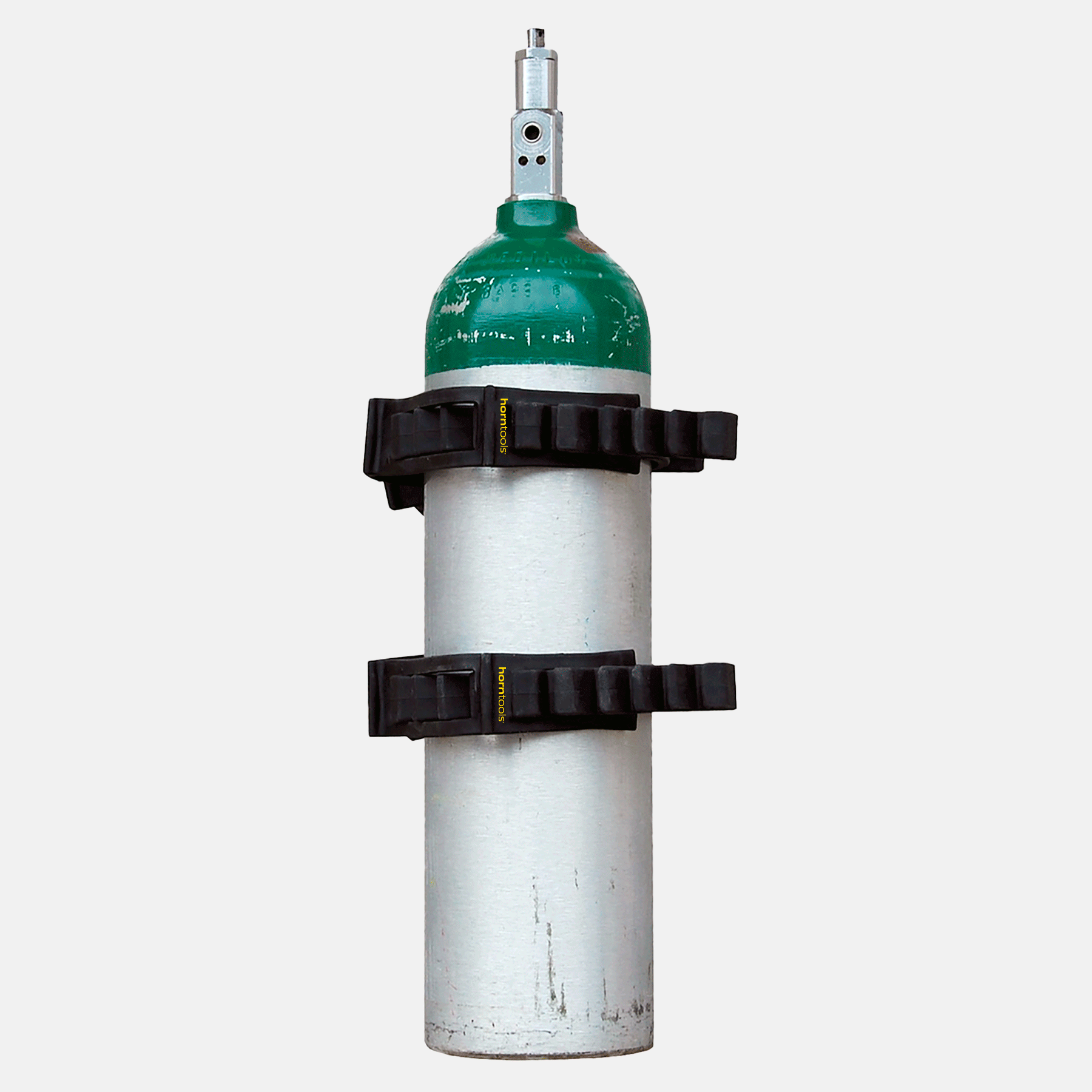

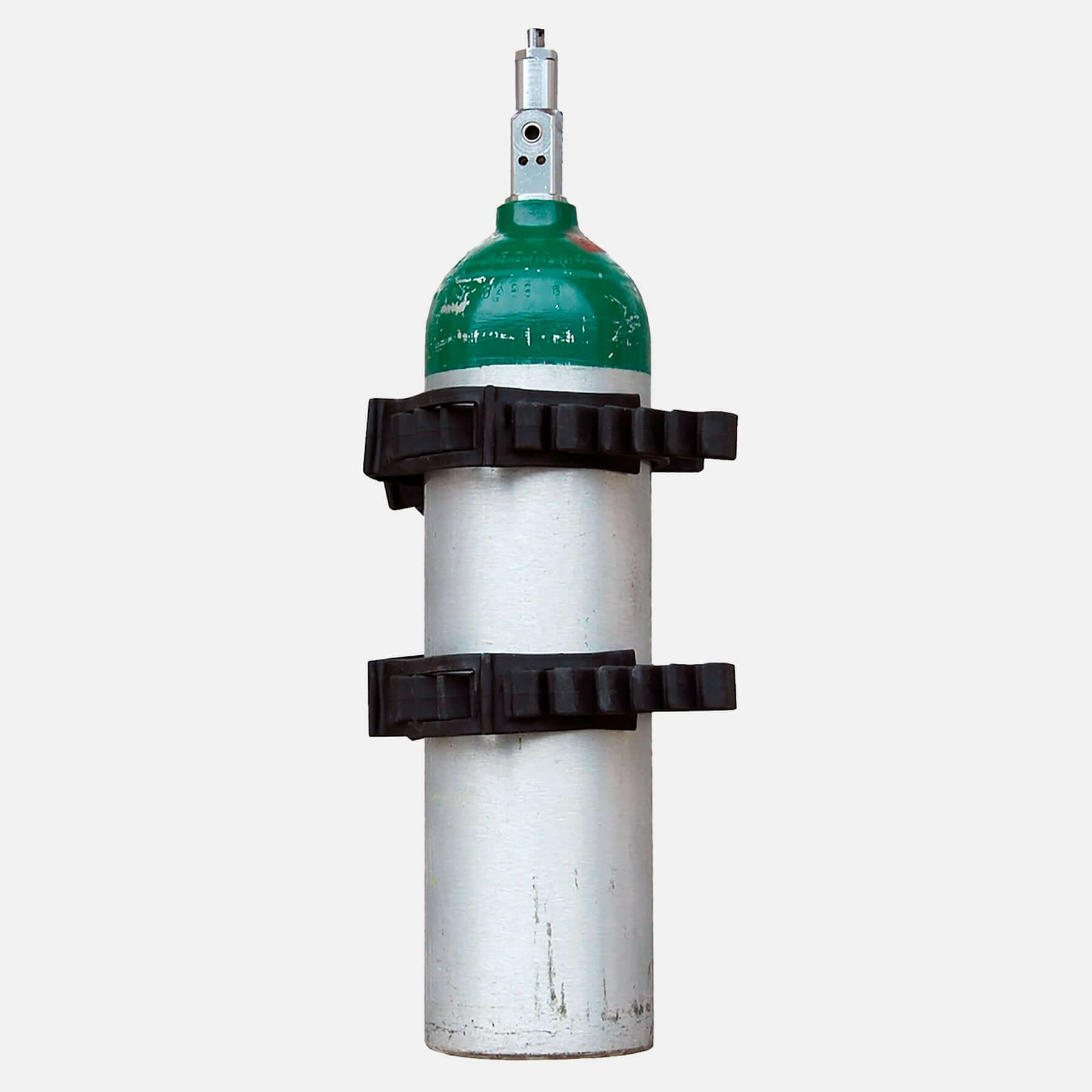

If you want to attach a large cylinder and the floor is unsupported, it is beneficial to use angle iron, a wooden base or a shelf support to support the cylinder. This also makes it easier to snap the holder into place.

The strap is divided into three sections. The first section takes items up to 7.5 cm, the second up to 12.5 cm and the third 17.5 cm. If desired, excess sections can be trimmed using scissors or wire cutters.

Scope of delivery:

1x Super Quick Fist tool holder
