Mounting trailing arm skid plate suitable for Suzuki Jimny GJ
(from October 2018)

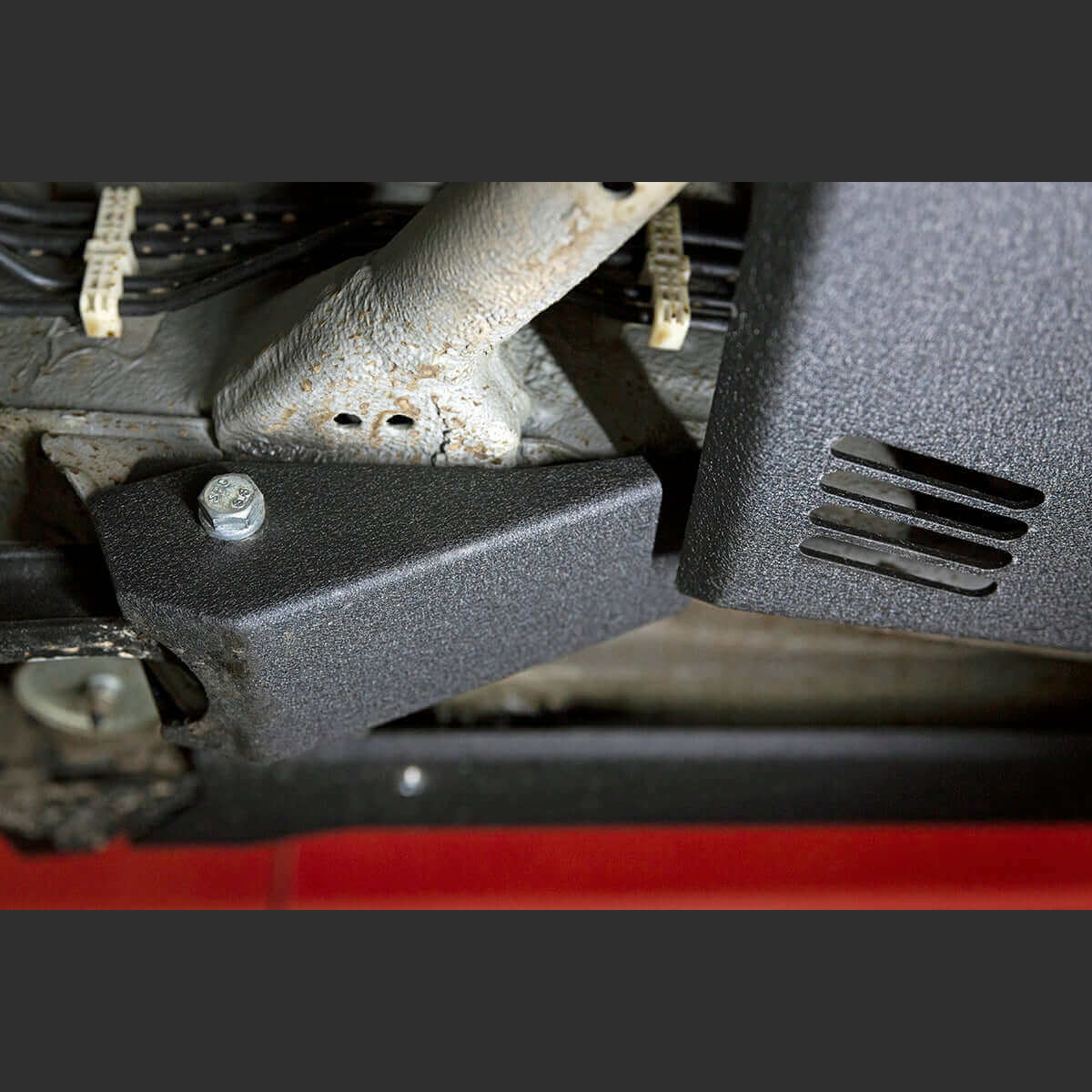

The skid plate fits perfectly on the original screw points and offers protection for the trailing arms. During production, we use high-quality steel with a thickness of 3 mm, which is then welded, galvanized and black powder coated.

This means we guarantee reliable protection and the best quality. As already known from horntools, the protection is attached via an existing hole in the frame and the trailing arm screw connections. However, since the trailing arms are loosened during installation, a wheel alignment must be carried out after installation. Installation must therefore be carried out by a trained automotive specialist
be performed.

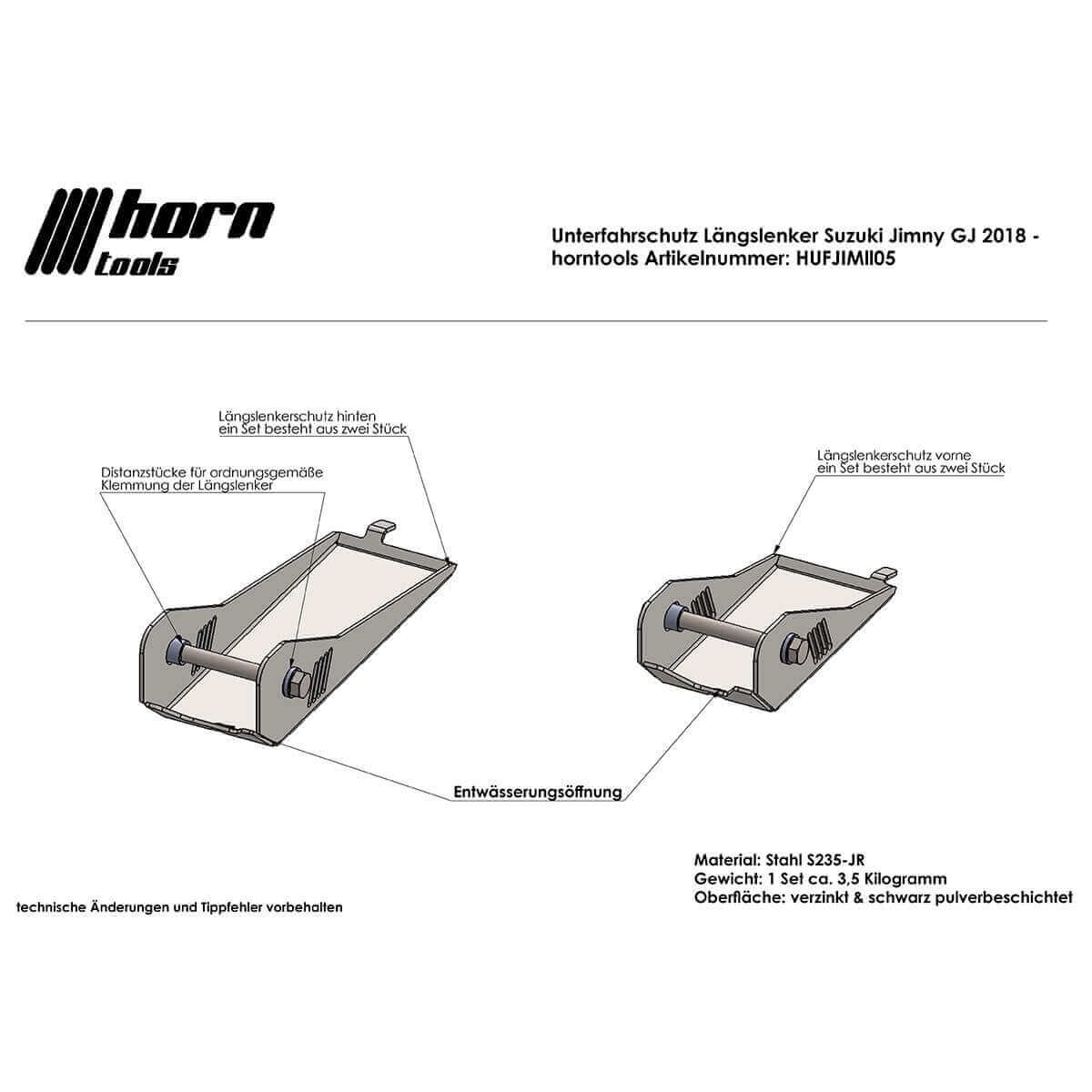

The set includes 4 pieces and also CNC turned spacer sleeves. These connect the protective plate with the trailing arm. The protective plates also have drainage holes. The freedom of movement of the trailing arms and thus the ability to fold them is retained.

A notice:

We have changed the coating on some of our products.
Therefore, there may be deviations in the skid plate with your already assembled and new products.

Technical data:

• Material: steel S235-JR
• Weight: 3.5 kg
