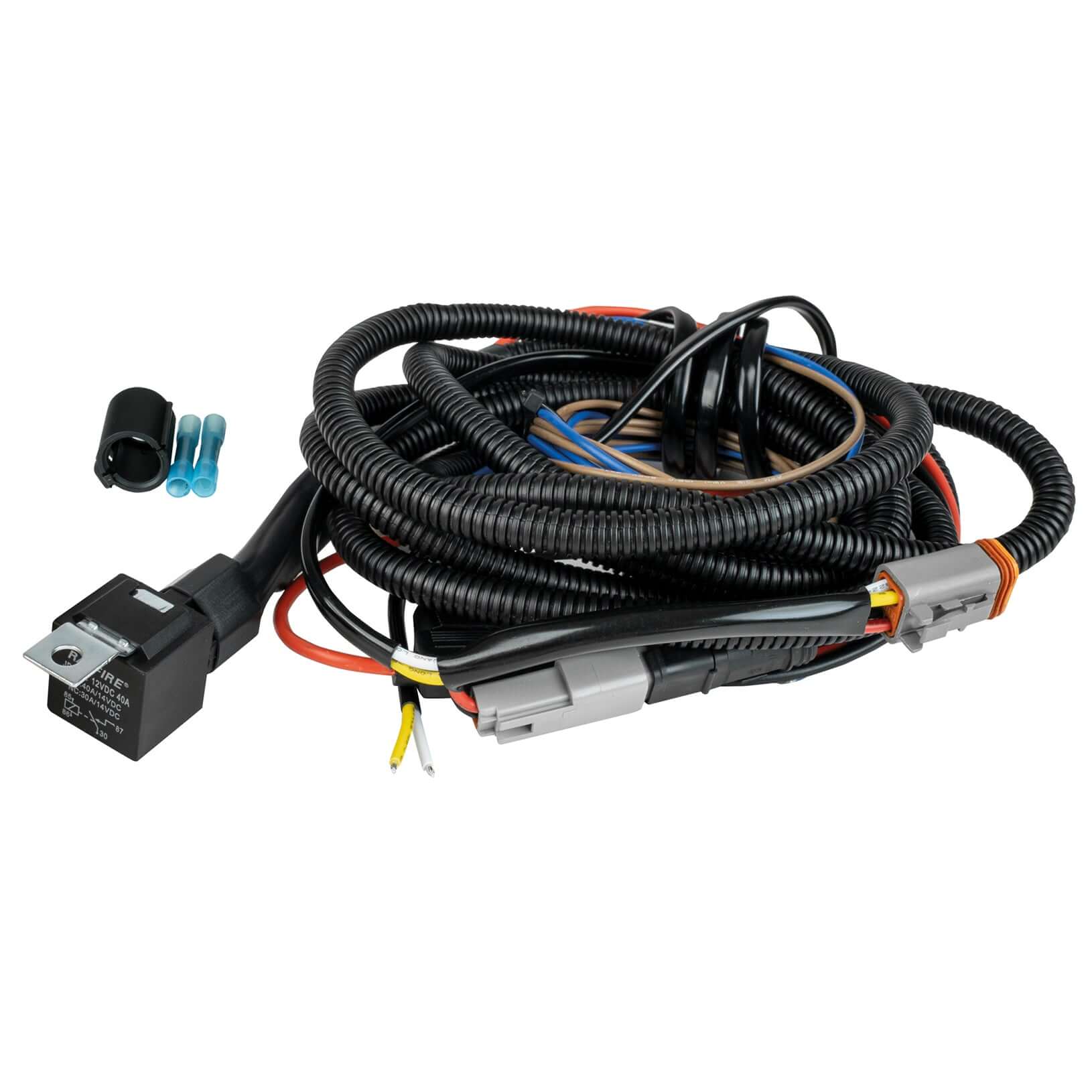

Strands Siberia Pro cable set 1x DT connector

A professional cable set with a DT connector .

Perfect for connecting an LED strip. A quick, easy and professional installation. The climate of the north creates both opportunities and dangers for vehicles on the roads. With the Siberia cable set pro 1x DT, a protective tube encloses the cables and the DT connector to provide additional protection - both mechanical protection against impacts and wear and tear as well as against dirt and water. The signal cable (brown 86) is used to connect the relay to our Canbus interface. If the vehicle is not affected by Canbus, the signal can be tapped directly from the vehicle headlights with this cable.

The Siberia cable set pro 1x DT offers further uses. There is an additional output 2 (blue 87A) which is used to control another signal such as the position light on the Siberia and Dark Knight series. Output 2 is used when using XBB. Coming out of the cable set is a two-pin DT connector and since both the Siberia and Dark Knight series use four-pin DT connectors due to the dual position light, an adapter cable is supplied to convert from four-pin to two-pin. The adapter cable also has two loose cables which are used to power the position light.

The DT connector is only designed to consume 156W and if more loads are connected that consume more than 156W, this cable set can handle up to a maximum of 360W if the DT connector is cut. Can be used for example for the Siberia DR 42” and 52” LED strips. The Siberia cable set pro 1x DT allows for easy and professional assembly. If the cable needs to be shortened for various reasons, this is easily possible as there are two waterproof, shrinkable connections that allow a safe and tight seal, as well as a hose clamp to re-insert the protective hose. However, it is important that you cut at least 50cm away from the relay to ensure that the cable is not exposed to moisture.

Facts:

• For connecting lighting with two-pin DT plug and four-pin DT plug.

• Protective hose that protects against impacts and wear as well as against moisture and dirt.

• Ability to adjust cable length for easier and cleaner installation.

• An additional cable (blue 87A) for connection, e.g. for XXB. For switching on position lights.
