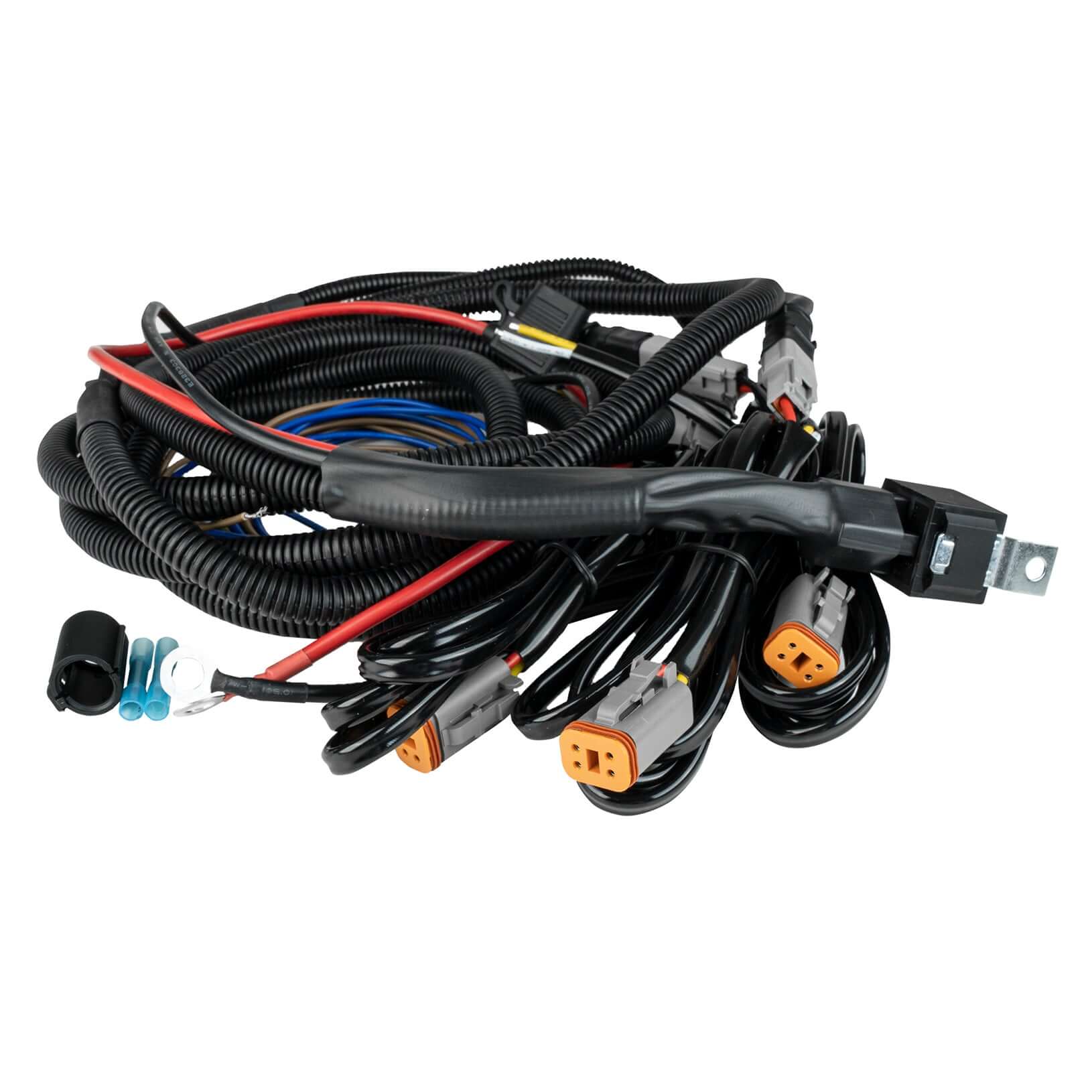

Strands Siberia Pro cable set 3x DT connector

A professional cable set with 3x DT connectors .

Suitable for all our additional lights with a maximum consumption of 3x156W or a maximum of 480W if the DT connector is cut off. Ideal for connecting three additional lights/LED ramps. A quick, easy and professional installation. The Nordic climate creates both opportunities and dangers for the vehicle on the roads. In the Siberia cable set pro 3x DT, a protective tube encloses the cables and the DT connector to provide additional protection - both mechanical protection against impact and wear and tear as well as against dirt and water. The signal cable (brown 86) is used to connect the relay to our Canbus interface. If the vehicle is not affected by Canbus, the signal is taken directly from the vehicle headlights with this cable.

The Siberia cable kit per 1x DT offers additional usage possibilities. There is output 2 (blue 87A) which is used to control another signal such as the position light on the Siberia and Dark Knight series. Output 2 is used when using XBB. A 2-pin DT connector is included in the cable kit and since both the Siberia and Dark Knight series use 4-pin DT connectors due to the dual position light, an adapter cable is included to convert from 4-pin to 2-pin. There are also two loose cables on the adapter cable which are used to power the position light.

The DT connector is only designed for a consumption of 156W. However, if consumers of more than 156W are to be connected, this cable set can handle up to a maximum of 480W with the DT connector cut off. It can be used for the 42" and 52" Siberia DR LED strips, for example. The Siberia cable set pro 3x DT enables easy and professional installation. If the cable needs to be shortened for certain reasons, this can be done easily as there are two waterproof, shrinkable connectors that allow a safe and tight connection, as well as a hose clamp for re-inserting the protective hose. However, it is important to cut at least 50 cm away from the relay to ensure that the cable does not come into contact with moisture.

• For connecting lighting with both a two-pin DT plug and a four-pin DT plug.
• Protective hose that protects against impacts and wear as well as against moisture and dirt.
• Ability to adjust cable length for easier and more attractive installation.
• An additional cable (blue 87A) for connection, e.g. for XXB. For switching on position lights.
