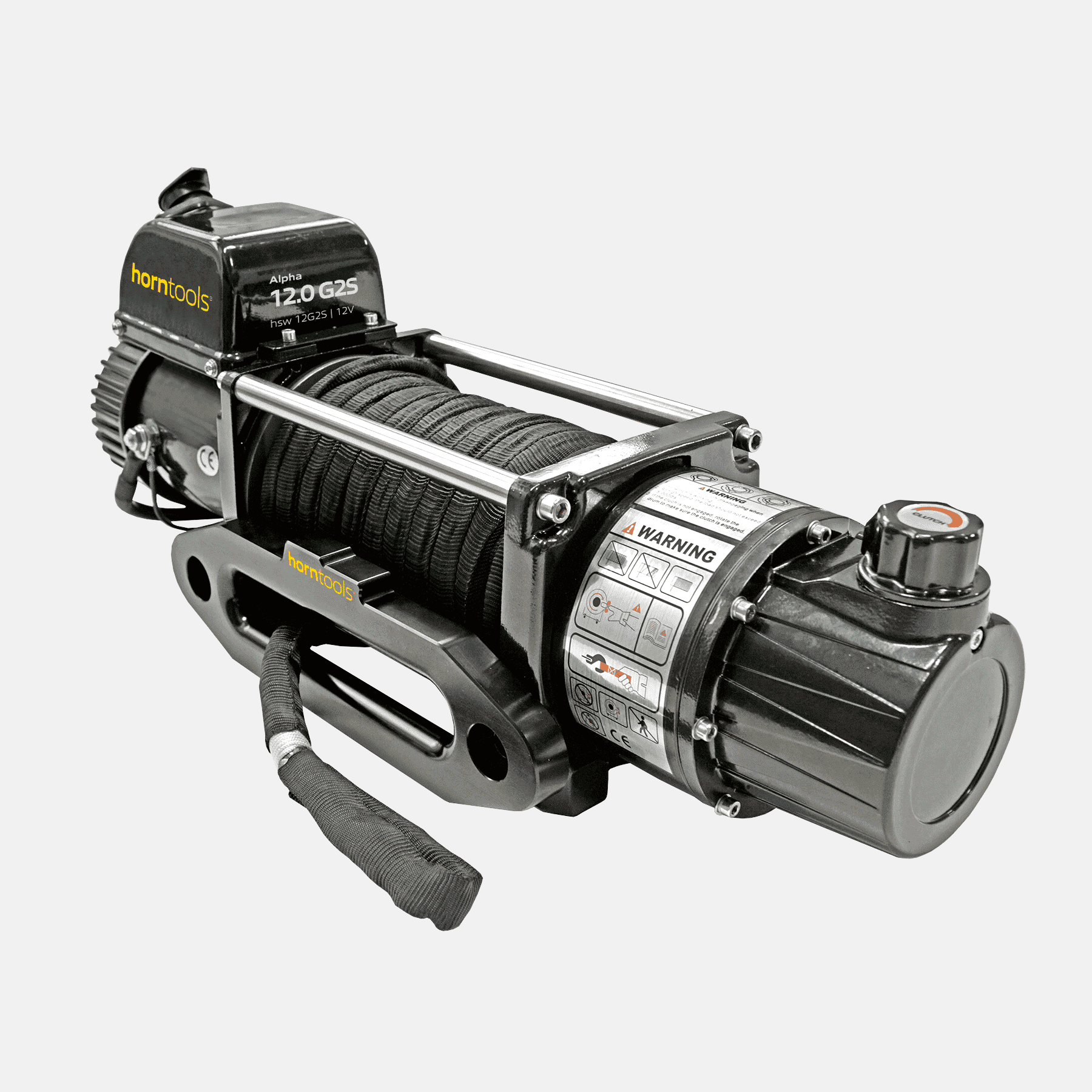

Elektrische Seilwinde 5,4 Tonnen AlphaG 2-Gang mit Trommelbremse

Winch 5.4 tons AlphaG 2-speed with drum brake

Name: Winch 5.4 tons AlphaG 2-speed with drum brake
Brand: Horntools
SKU: HSW12G2S-12VDY
Price: 1599.0 EUR
Availability: InStock

1.599,00€

Tax included. Shipping calculated at checkout

SKU: HSW12G2S-12VDY

GTIN: 9010354003474

Tension:

12V

12V 24V

Rope type:

Synthetic rope

Variant

Quantity:

Developed in Austria
5 year guarantee
Free advice

Description

The Alpha series is one of the most popular winches among our customers. They are versatile, have a low weight and a compact design.

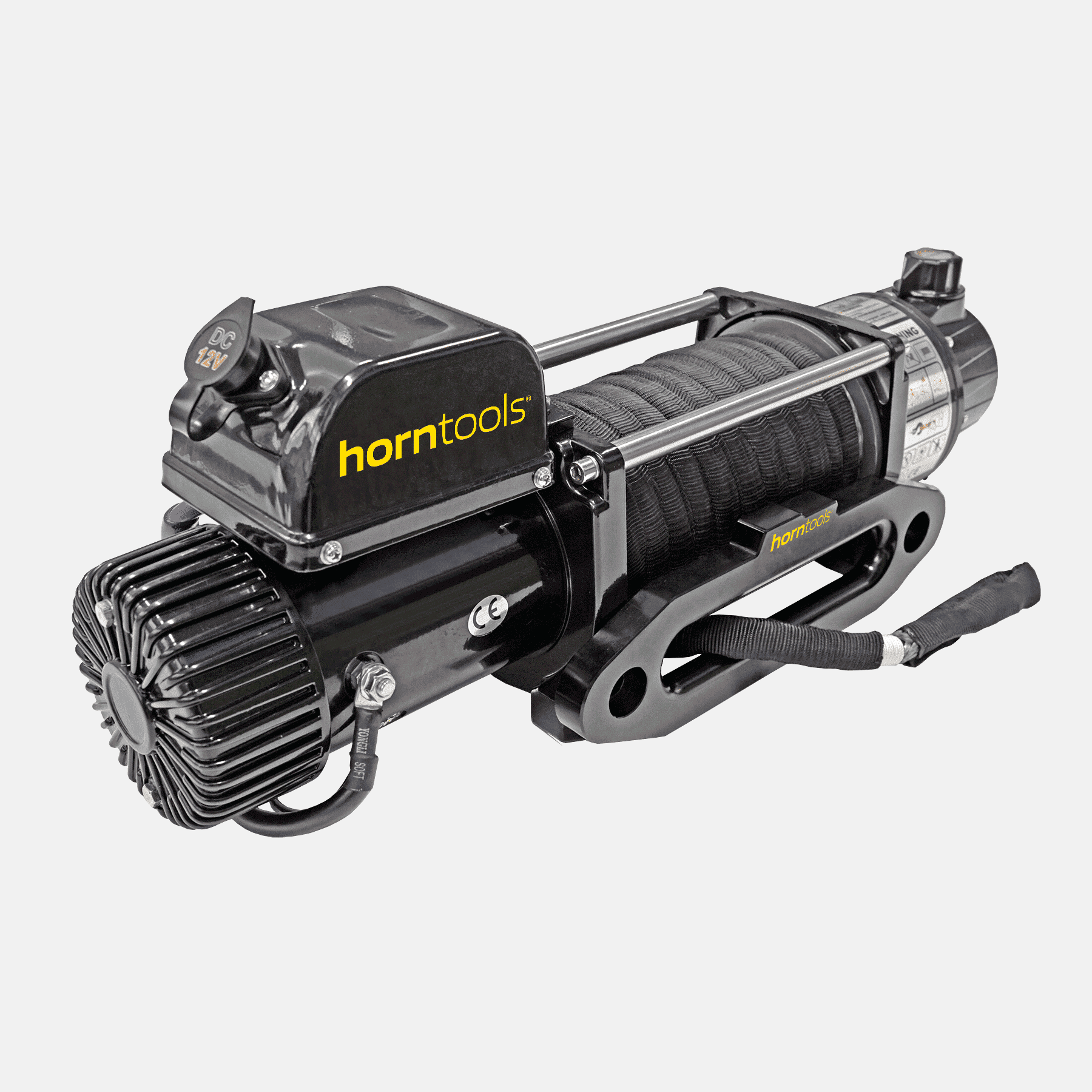

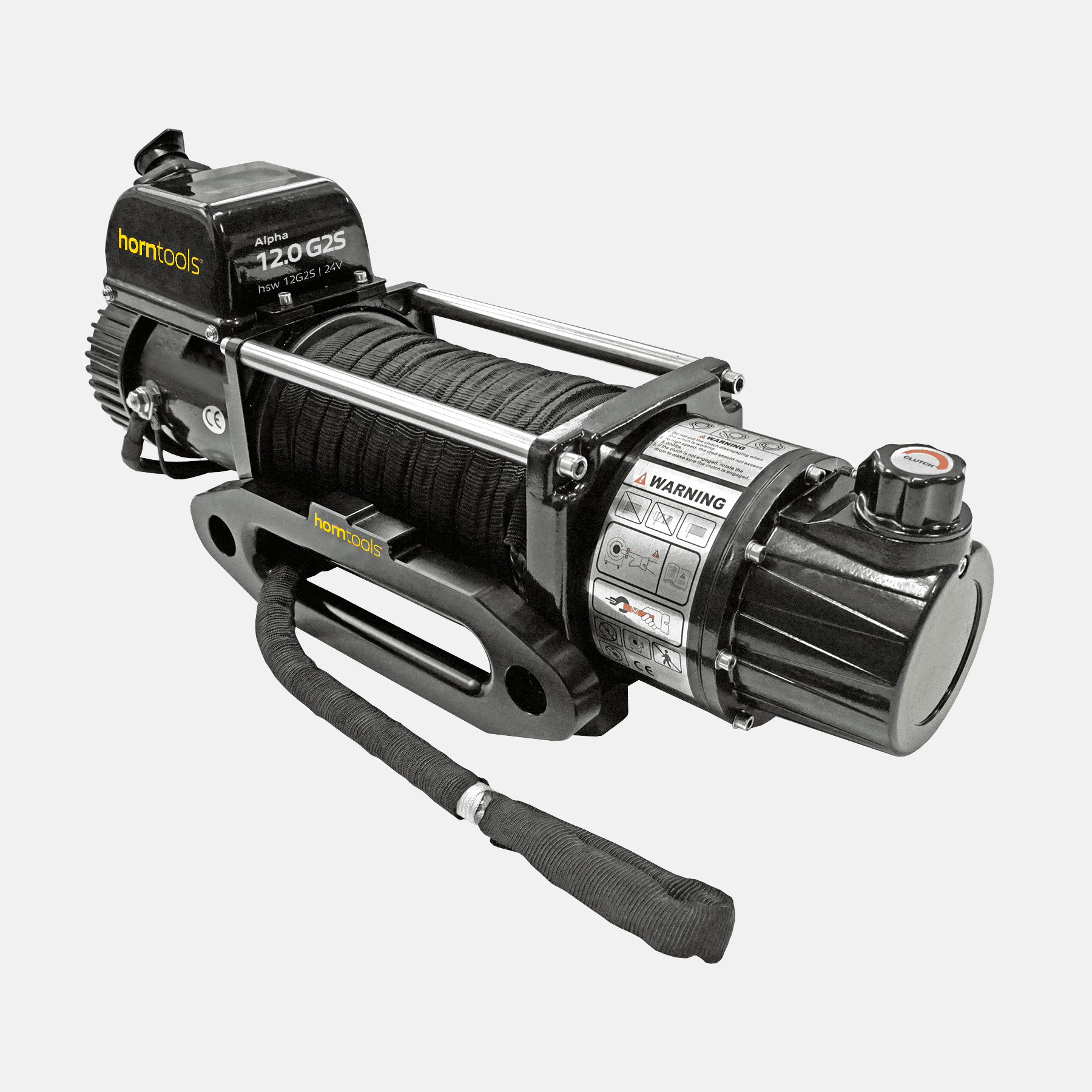

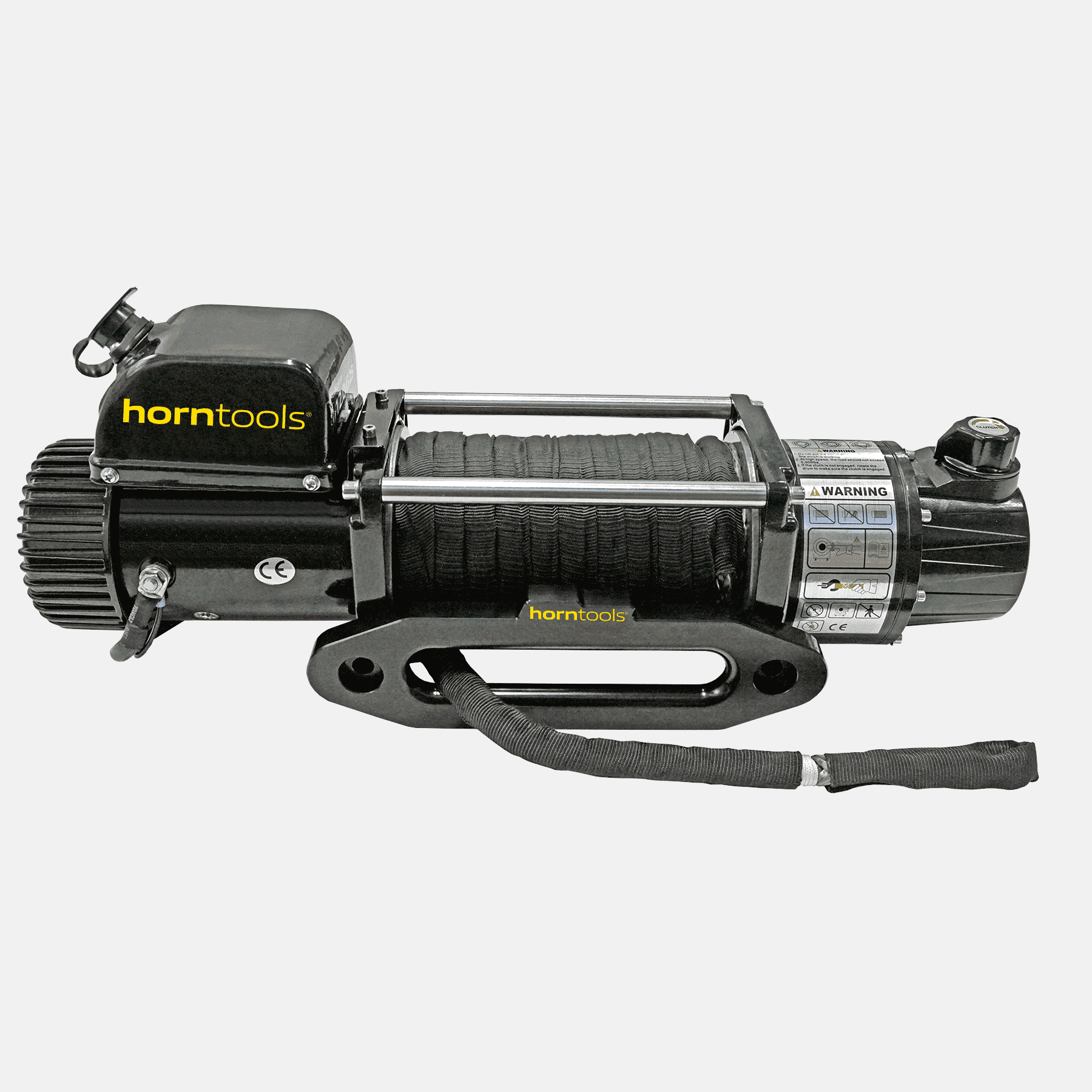

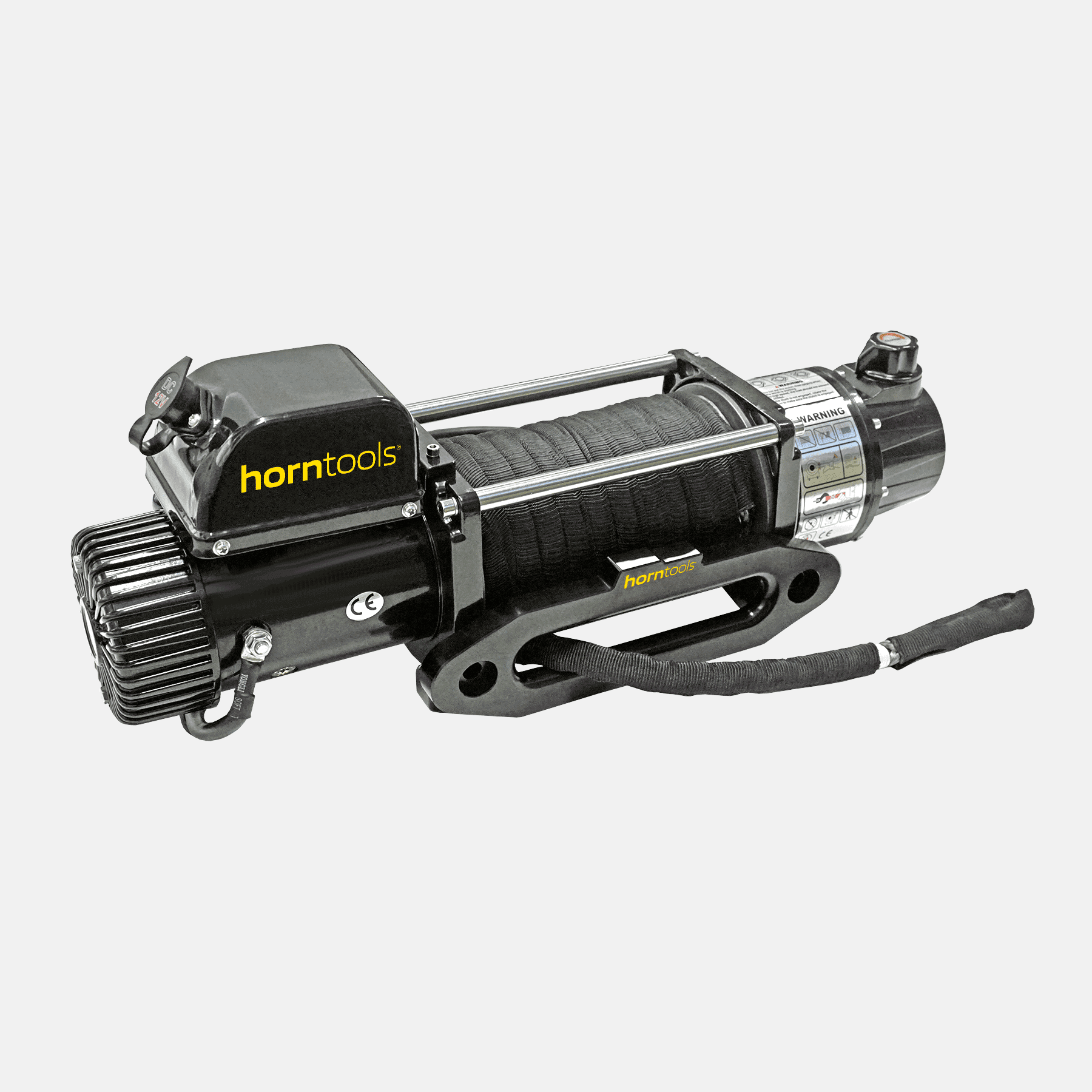

The Alpha G 12.0 2 gear is the strongest with a pulling force of up to 5.4 tons and also the fastest winch in the series with a maximum pulling speed in 2nd gear of 50 m/min. The horntools winch can be used in a variety of ways on your vehicle. It can be installed as a front winch or mounted directly on the bumper.

In addition to the included cable remote control, this winch can also be expanded with a radio remote control.

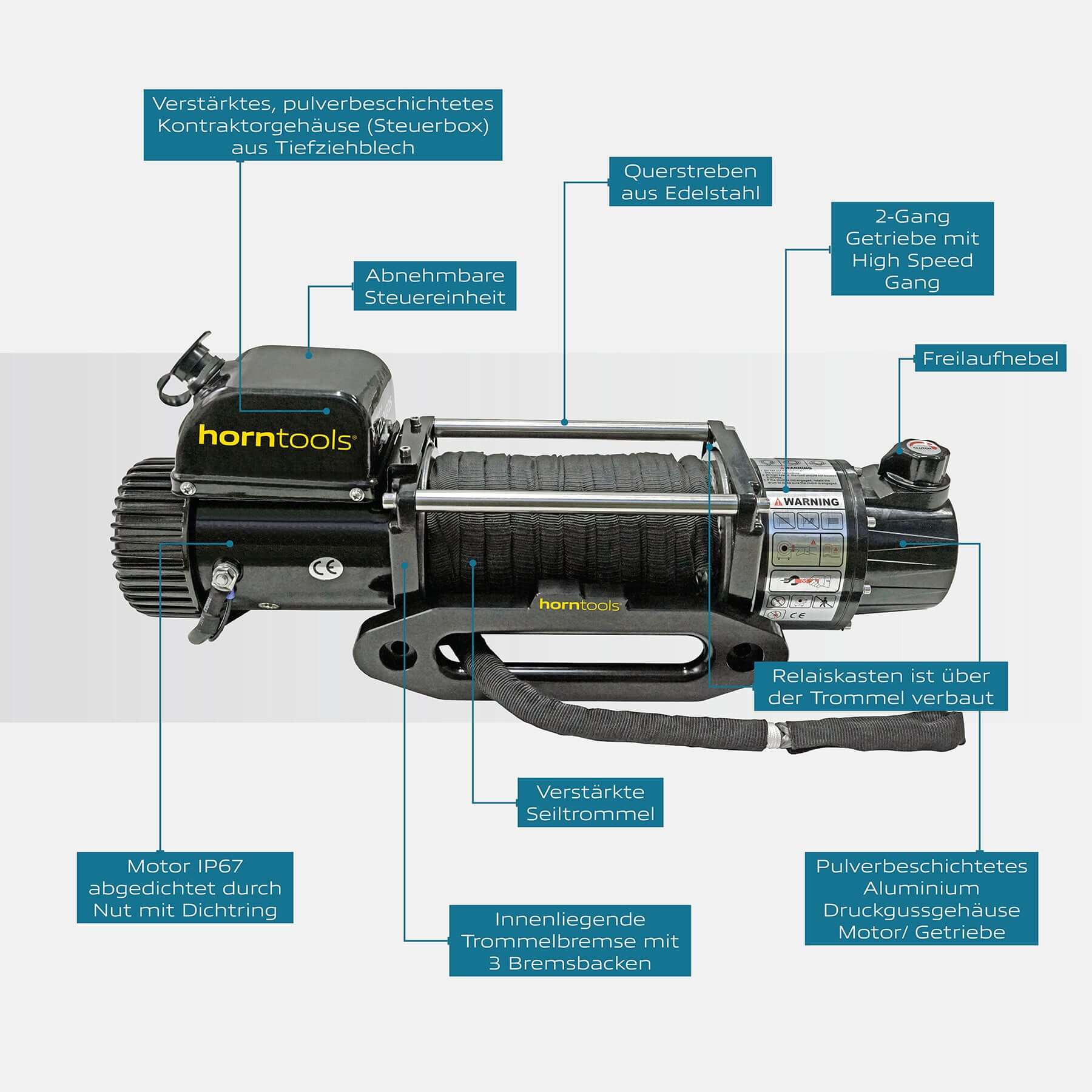

Characteristics:

2-speed transmission with high speed gear
Relay box is installed above the drum
Motor IP67 sealed by groove with sealing ring

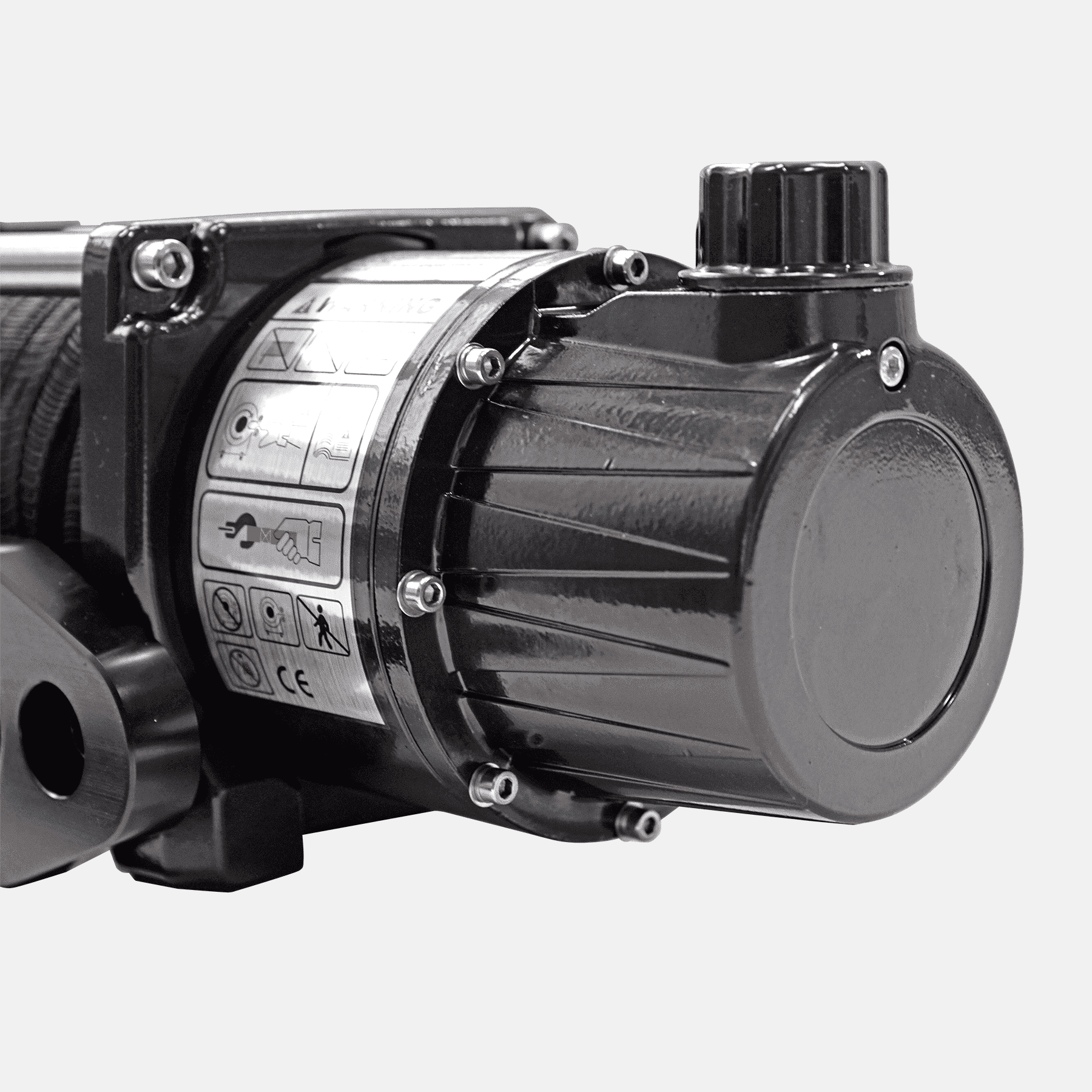

Freewheel lever
Stainless steel crossbars
Reinforced rope drum
Powder-coated aluminum die-cast housing motor/gearbox
Internal drum brake with 3 brake shoes
Removable control unit (so that the control can be installed anywhere)
Reinforced, powder-coated contractor housing (control box) made of deep-drawn sheet metal

Scope of delivery:

Winch

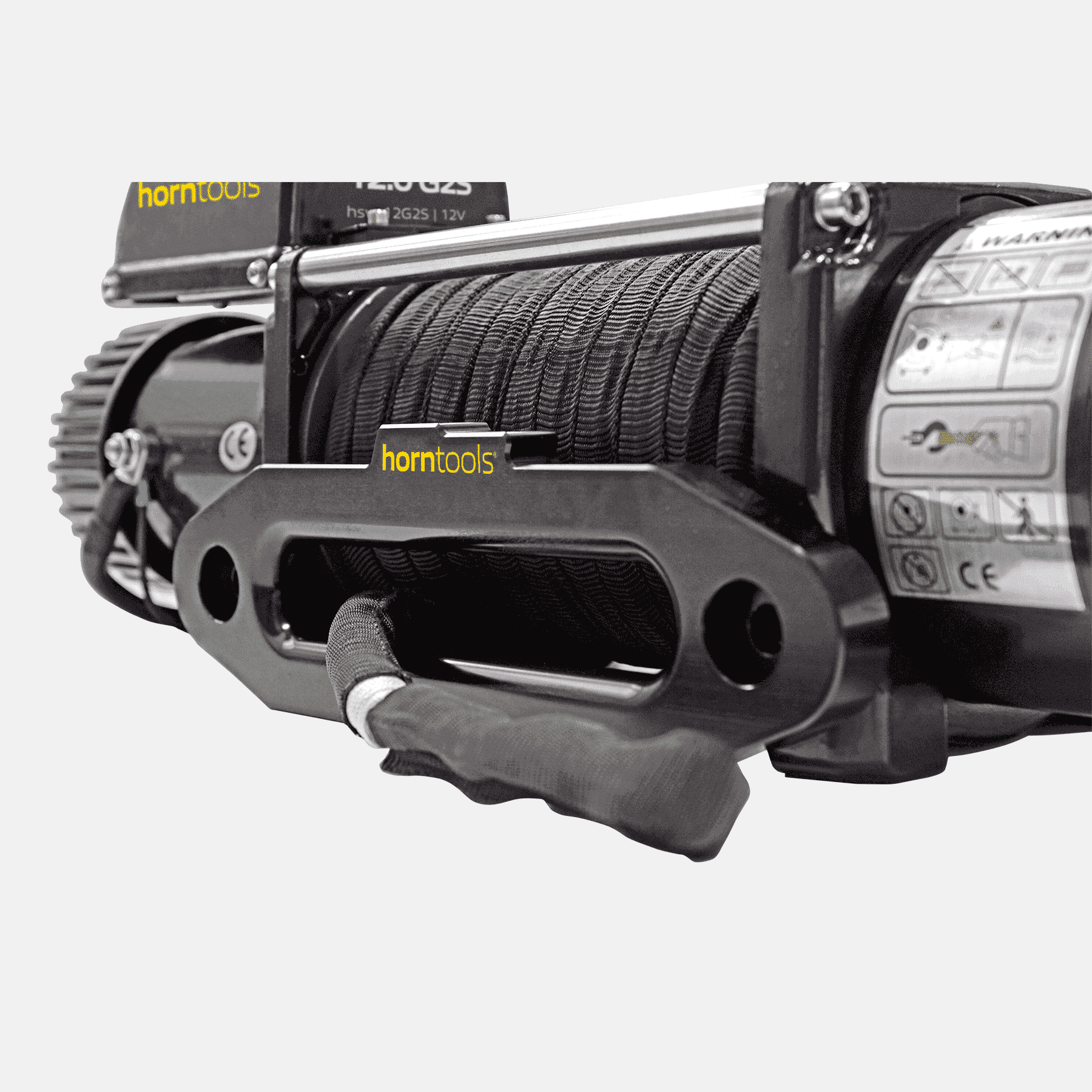

Aluminum cable window
Fastening screws
Synthetic rope
Cable remote control
Operation manual

Danger:

Please note that our winches may only be used for ground traction and are not suitable for lifting!

The operating instructions for the winch must be read completely before use and must be strictly followed, otherwise there is a risk of injury!

Guarantee:

We grant a 5-year guarantee on the gearbox and drum of the winch in compliance with the guarantee and service regulations. To do this, please fill out our warranty application in our user manual and send it back to us by email. The guarantee only applies to private users, not to commercial use and only if the operating instructions are followed.

A notice:

You can get all the important information about handling your new winch in the operating instructions and from your specialist dealer. This winch can produce a higher level of noise.

FAQ & Download

Downloads

Operation manual
Drawing

Technical data

12 volts:

Gearbox: 3-stage planetary gearbox
Max. pulling force: 5400 kg
Slow/Fast: 5400kg/2200kg

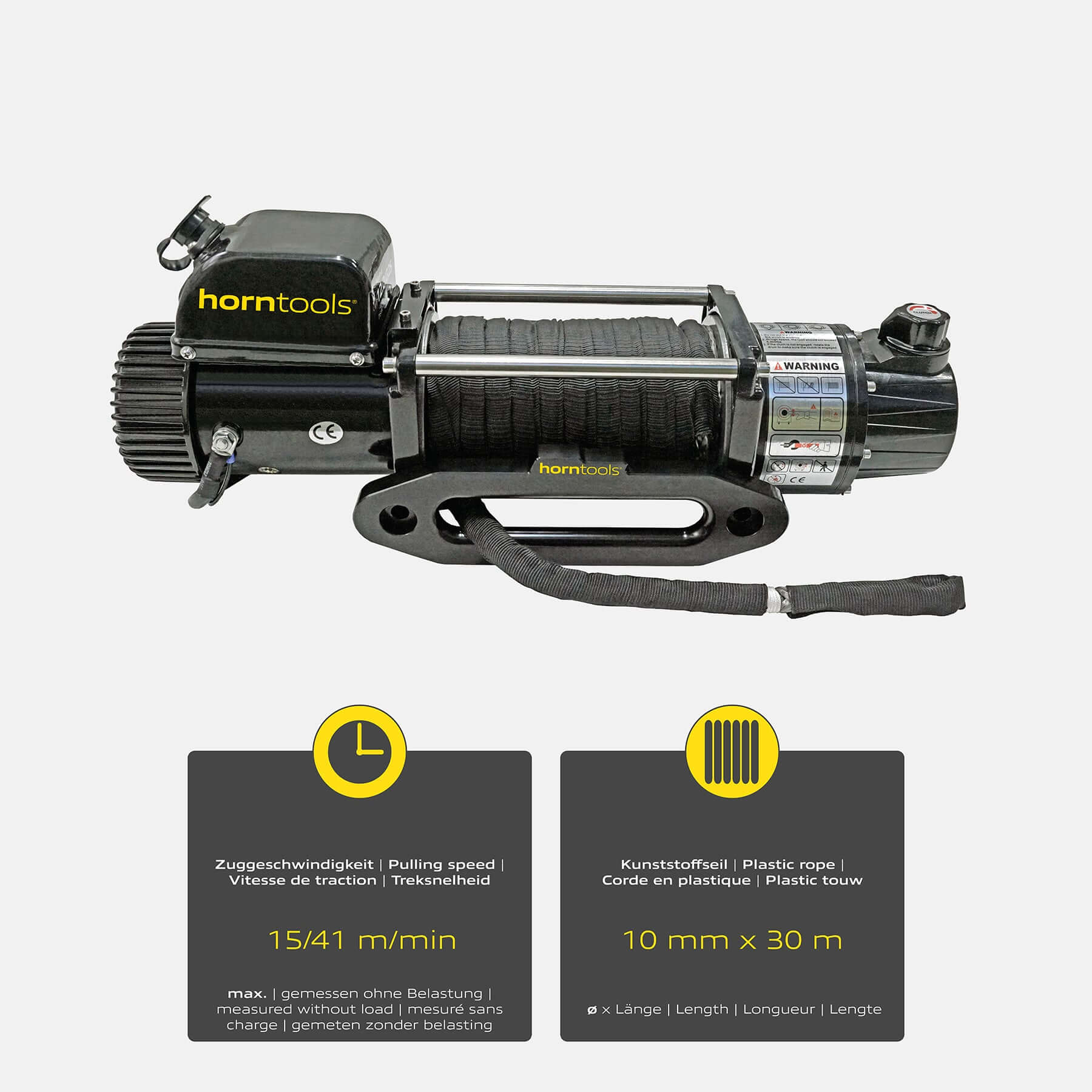

Max. pulling speed: 15/41 m/min*
Weight: 31kg
Engine type: Series Wound**
Gear ratio: 267/86:1
Max. power consumption: 500 amps
Voltage: 12V
Rope (∅ x length): 10 mm x 30 m
Drum (∅ x length): 63 x 223 mm
Overall size (LxWxH): 637 x 160 x 230 mm
Cable cross section: 35 mm²
Cable length: 180 cm

24 volts:

Gearbox: 3-stage planetary gearbox
Max. pulling force: 5400 kg
Slow/Fast: 5400kg/2200kg
Max. pulling speed: 17/47 m/min*
Engine type: Series Wound**
Gear ratio: 267/86:1
Max. power consumption: 250 amps
Voltage: 24V
Rope (∅ x length): 10 mm x 30 m
Drum (∅ x length): 63 x 223 mm
Overall size (LxWxH): 637 x 160 x 230 mm
Weight: 31kg
Cable cross section: 35 mm²
Cable length: 180 cm

*measured without load

**Magnetic field is generated electrically
