Mobile winch system Super Speed ​​12V with 80m synthetic cable

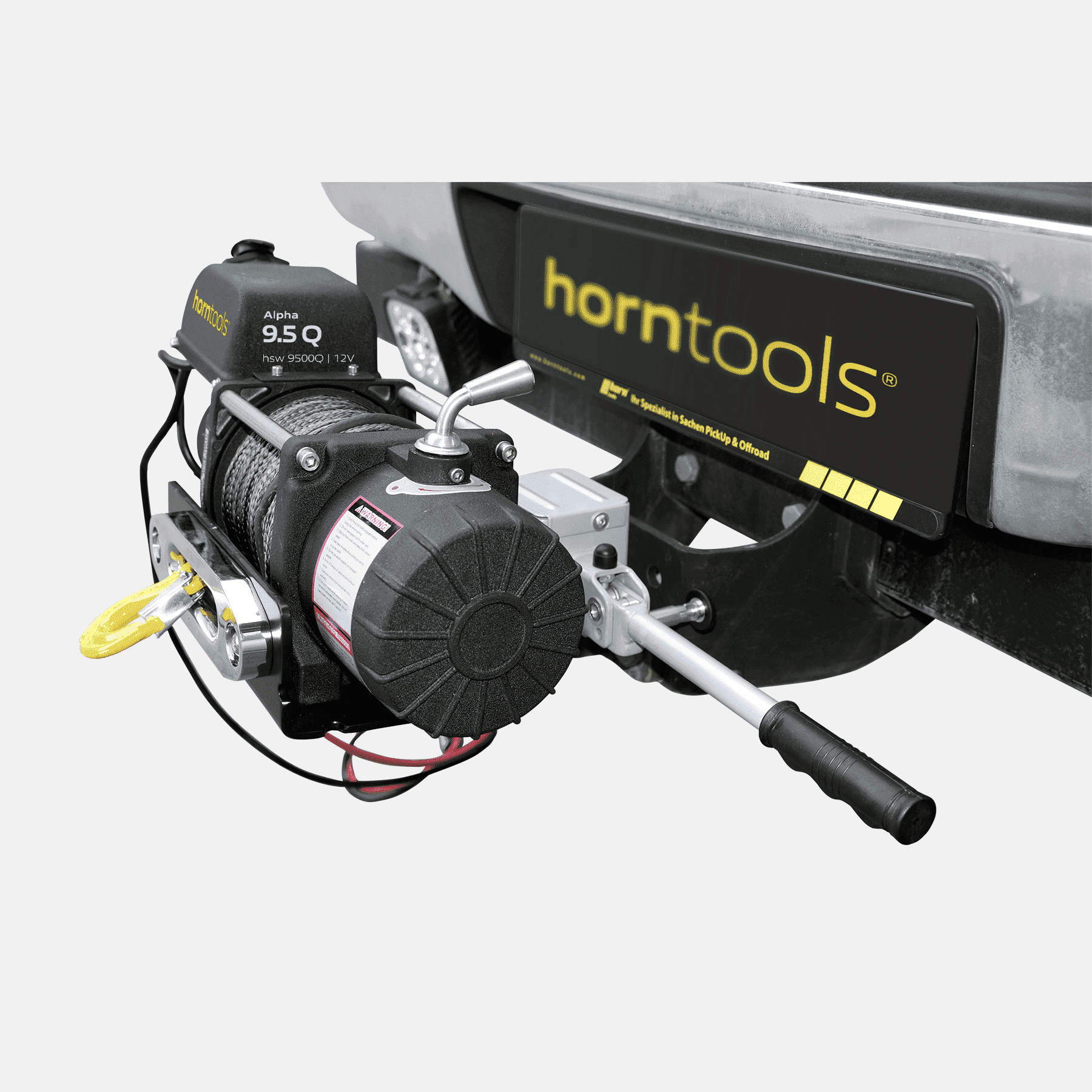

The mobile winch set from horntools is ready for use within minutes thanks to the quick-release bracket. You can mount it on a horntools winch carrier or on a standard trailer hitch.

To mount it on a trailer hitch, you need a cable set extension.

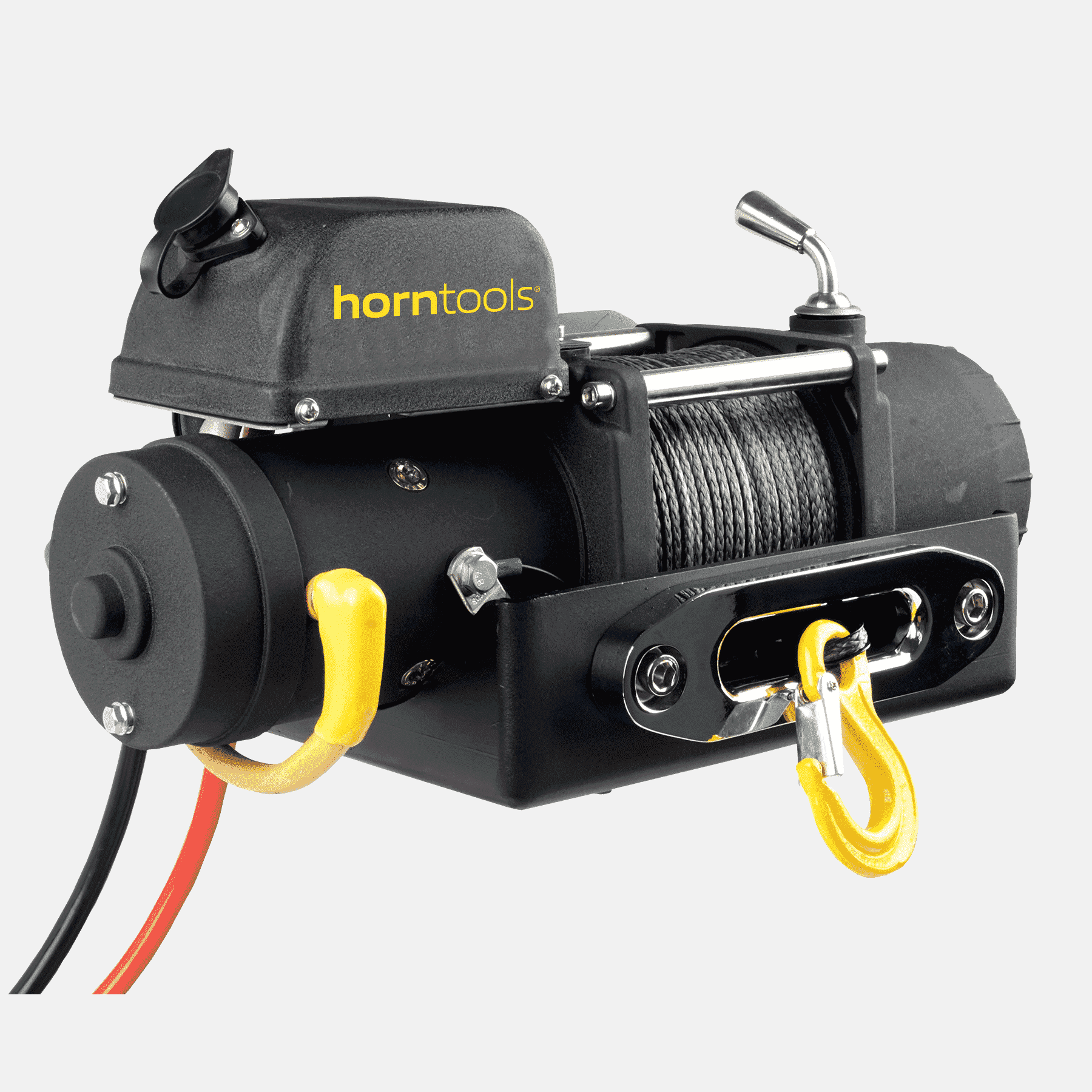

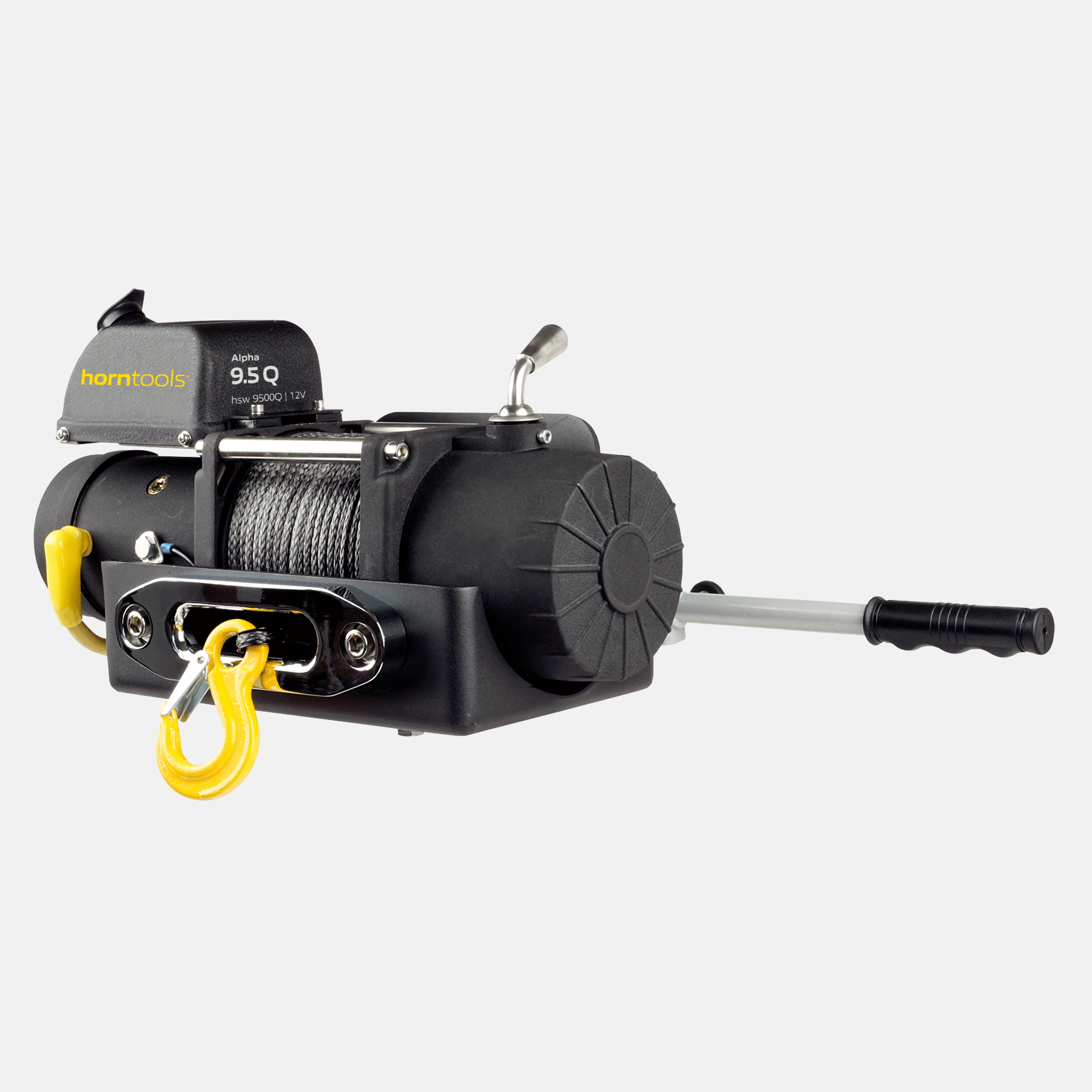

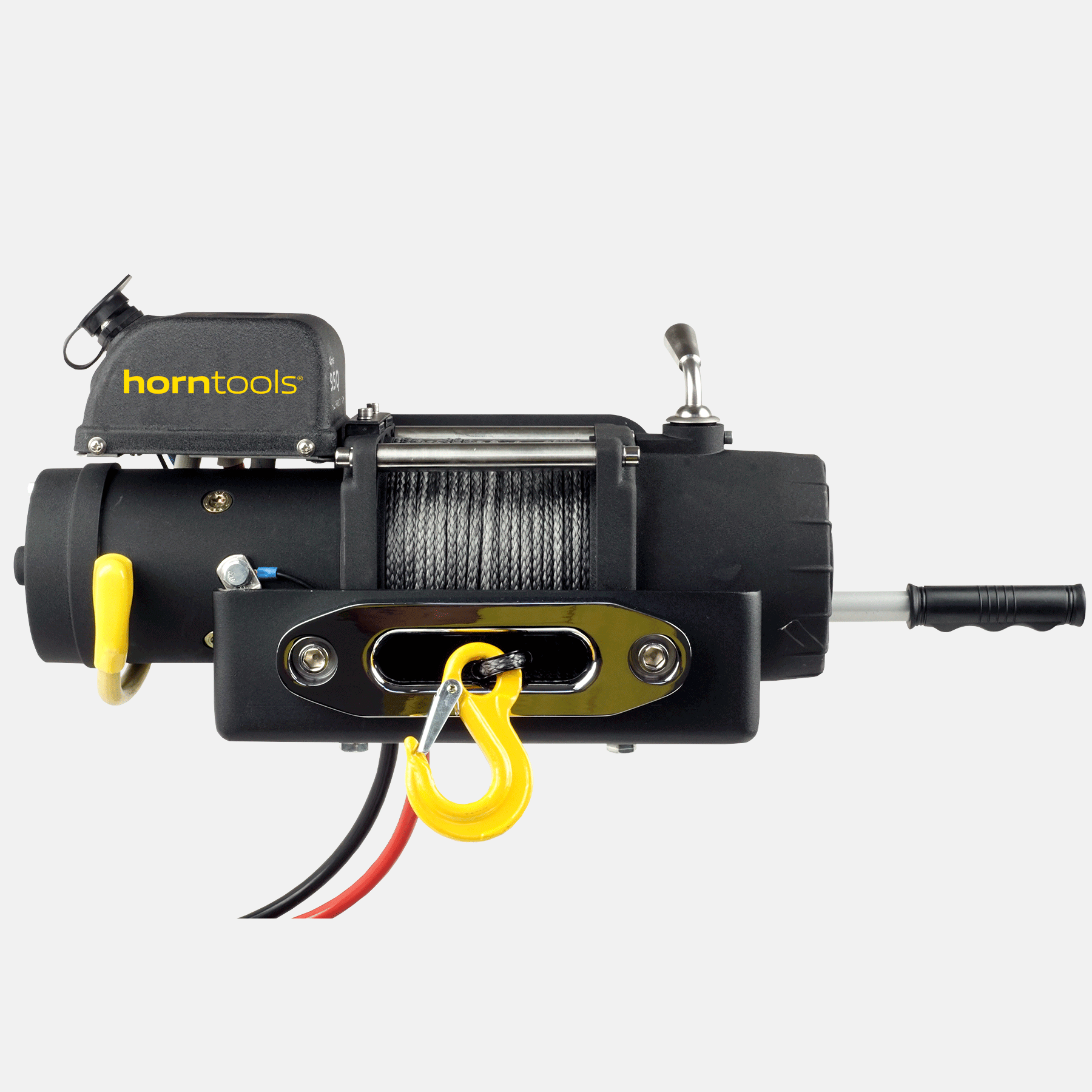

The associated Alpha 9.5 Quick Compact winch has a pulling force of 4.3 tons despite its compact design. The maximum tensile force of 300 kg must not be exceeded; the quick-release bracket is not designed for greater forces.
The special thing about the Quick models of the Alpha series is the extremely high maximum pulling speed of 15 m/min (measured without load). This allows you to pull your loads or other items out of the mud or onto the loading area even faster. It is ideal for use in trailer construction, as a hunting winch, as a rear winch or on tow vehicles with glasses.

Characteristics:

• Motor IP67 sealed by groove with sealing ring
• Freewheel lever
• Stainless steel crossbars
• Reinforced rope drum
• Powder-coated aluminum die-cast housing motor/gearbox
• Internal drum brake with 3 brake shoes
• Removable control unit (so that the control can be installed anywhere)
• Reinforced, powder-coated contractor housing (control box) made of deep-drawn sheet metal

Scope of delivery:

• Winch
• Aluminum cable window
• Fastening screws
• Synthetic rope with hooks
• Snatch block with hook

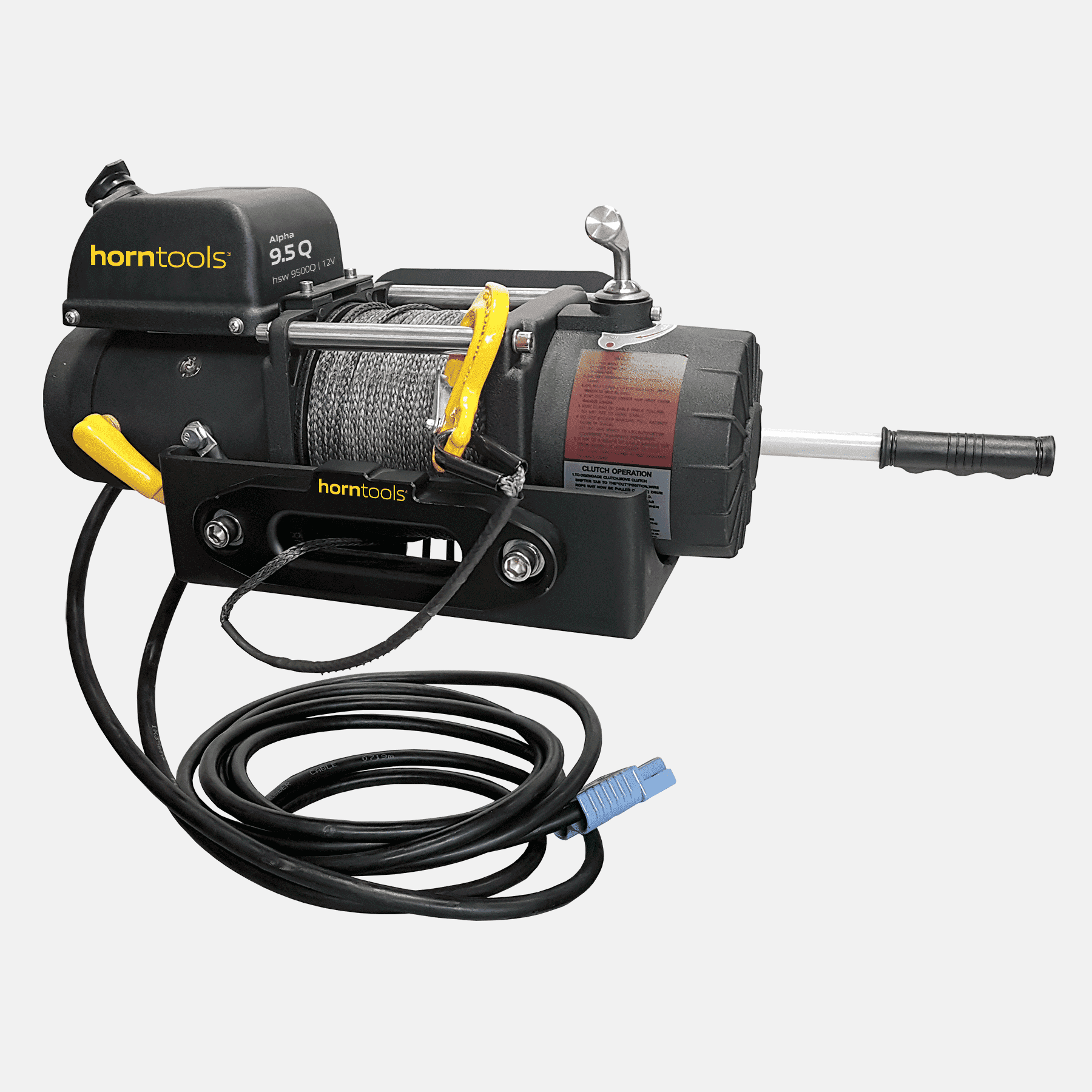

• Cable remote control
• Radio remote control
• Quick release for mounting on a trailer hitch or on the horntools winch carrier
• Operation manual

Danger:

Please note that our winches may only be used for ground traction and are not suitable for lifting!
The operating instructions for the winch must be read completely before use and must be strictly followed, otherwise there is a risk of injury!
The maximum tensile force of 300 kg must not be exceeded; the quick-release bracket is not designed for greater forces.

Guarantee:

We grant a 3-year guarantee on the gearbox and drum of the winch in compliance with the guarantee and service regulations.
To do this, please fill out our warranty application in our user manual and send it back to us by email.
The guarantee only applies to private users, not to commercial use and only if the operating instructions are followed.

A notice:

You can get all the important information about handling your new winch in the operating instructions and from your specialist dealer.
This winch can produce a higher level of noise.
