Sigma 8.0 ton winch - your robust powerhouse

We know you love challenges. Especially those that push you to your limits and force you to mobilize all your skills and energy. We developed the Sigma 8.0 ton winch precisely for these moments. It is the strongest electric winch from horntools.

High performance in every detail

We didn't save on anything when designing the Sigma 8.0. With an impressive pulling force of 8 tons and a 3-stage planetary gear, it is optimally equipped to master the toughest tasks. Their robustness and reliability make them the ideal choice for vehicles with a total weight of up to 12 tonnes. Even with intensive use, all components can withstand the highest loads.

Versatility for every situation

The Sigma 8.0 is not only a power package, it is also flexible. It can easily be used on truck trailers to pull machines and forklifts onto the trailer. And thanks to the removable control unit, it can be adjusted and placed according to your needs.

Ready for tough use

With a motor that has IP67 protection, the Sigma 8.0 can withstand even the most adverse conditions, meaning the motor is dust-proof and can remain submerged for 30 minutes without being damaged.

Control in your hand

Whether with the included cable remote control or with an optionally available radio remote control - you always have full control over the Sigma 8.0. With a maximum pulling speed of 6 m/min (measured without load), you are ready for all the challenges that the terrain or your job has in store for you.

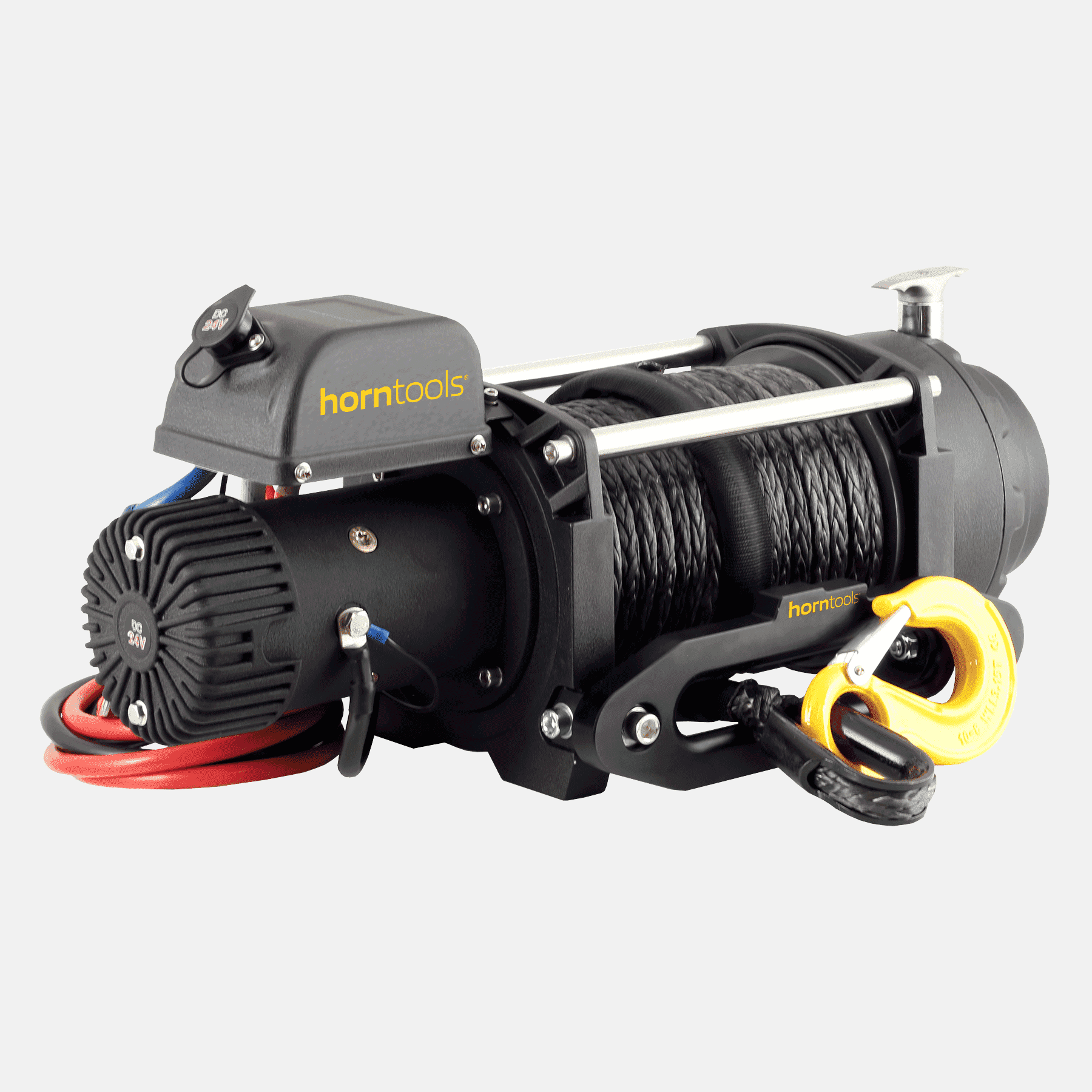

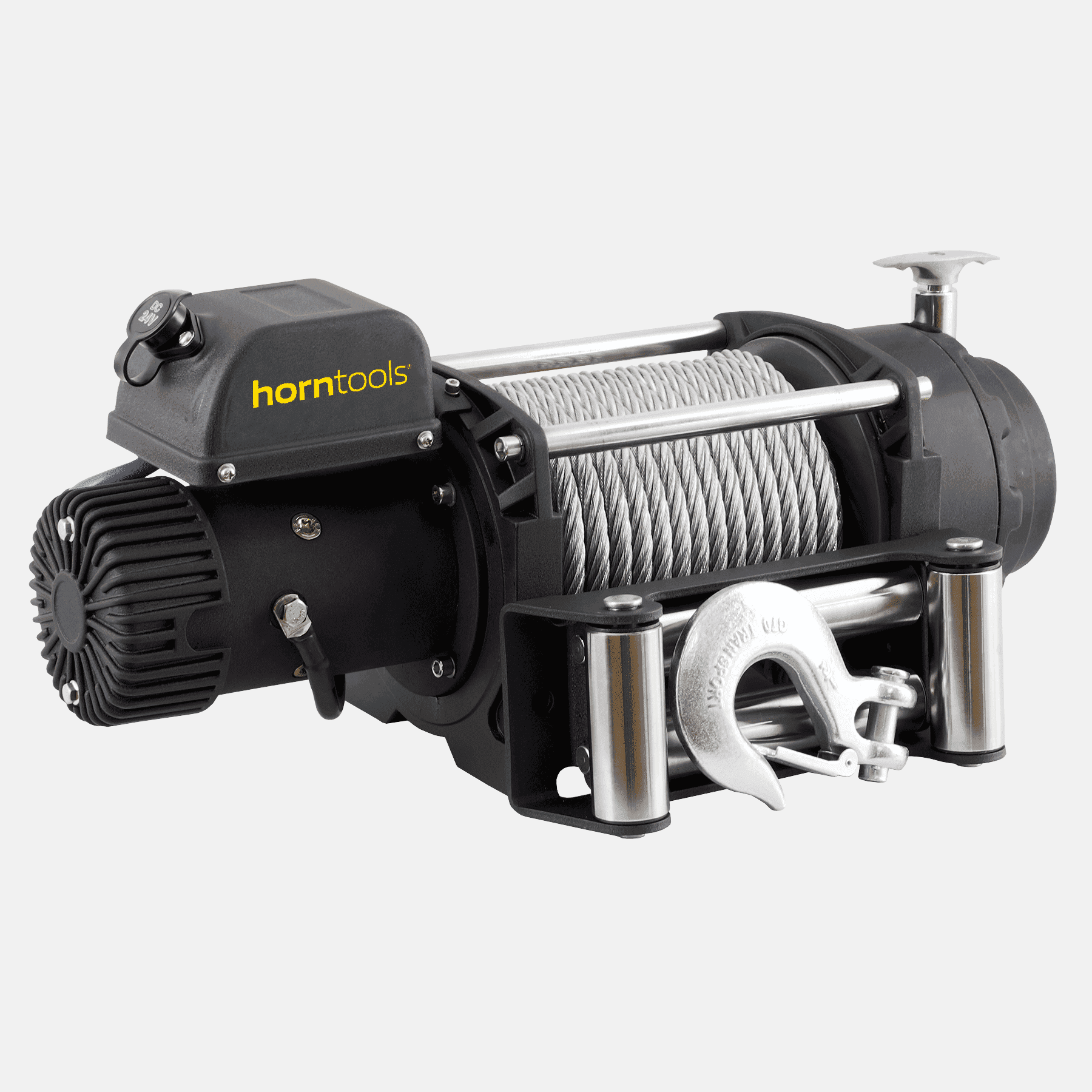

Steel or synthetic

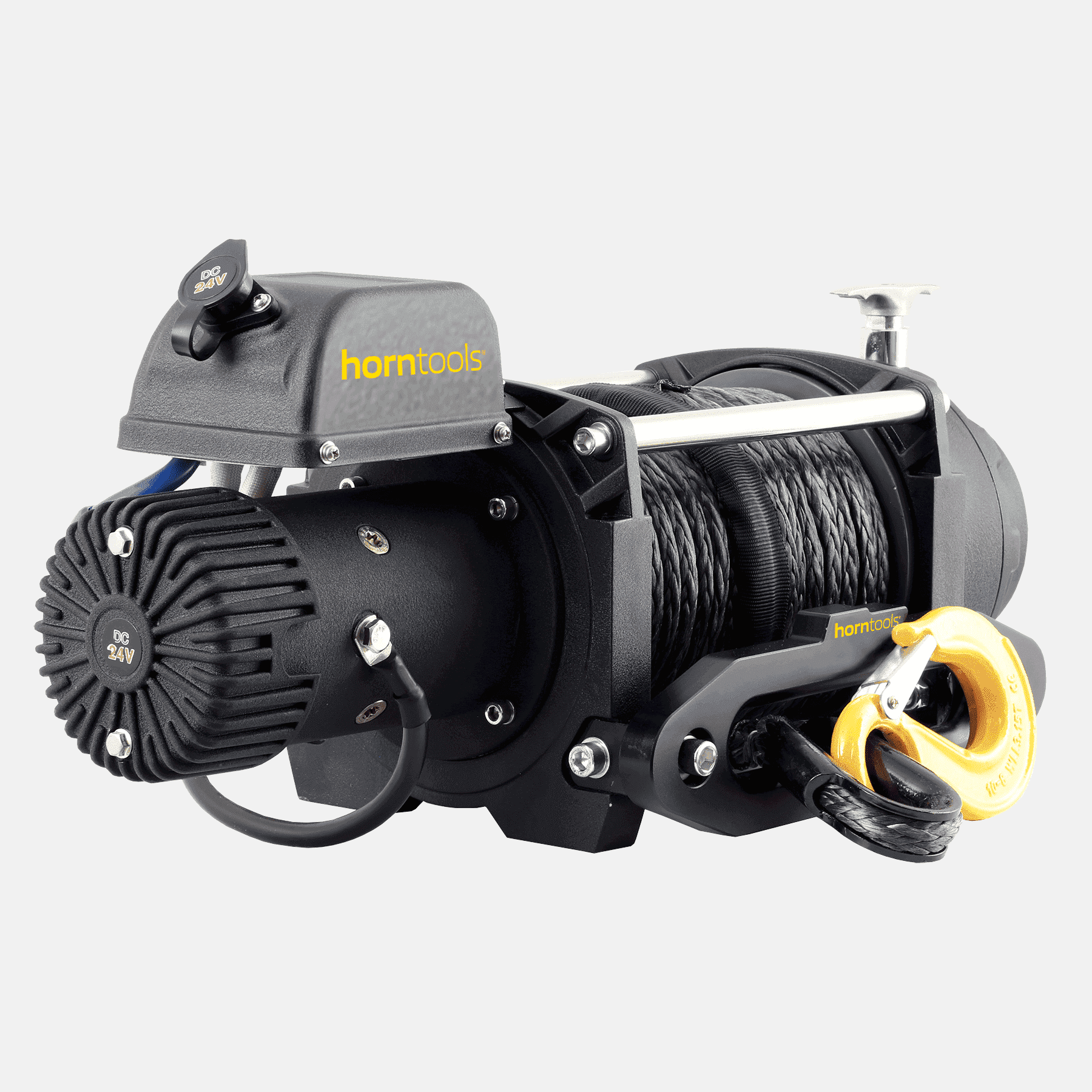

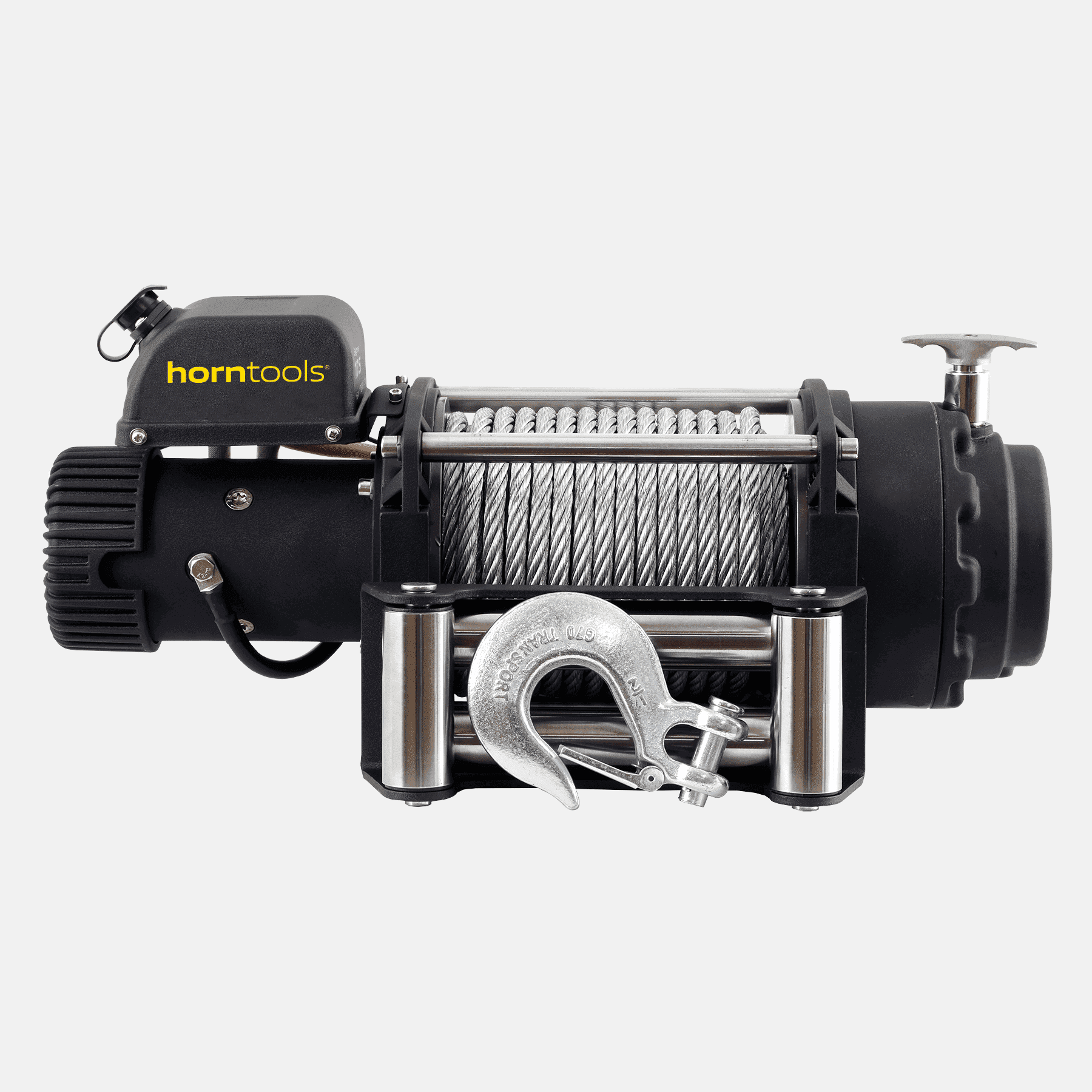

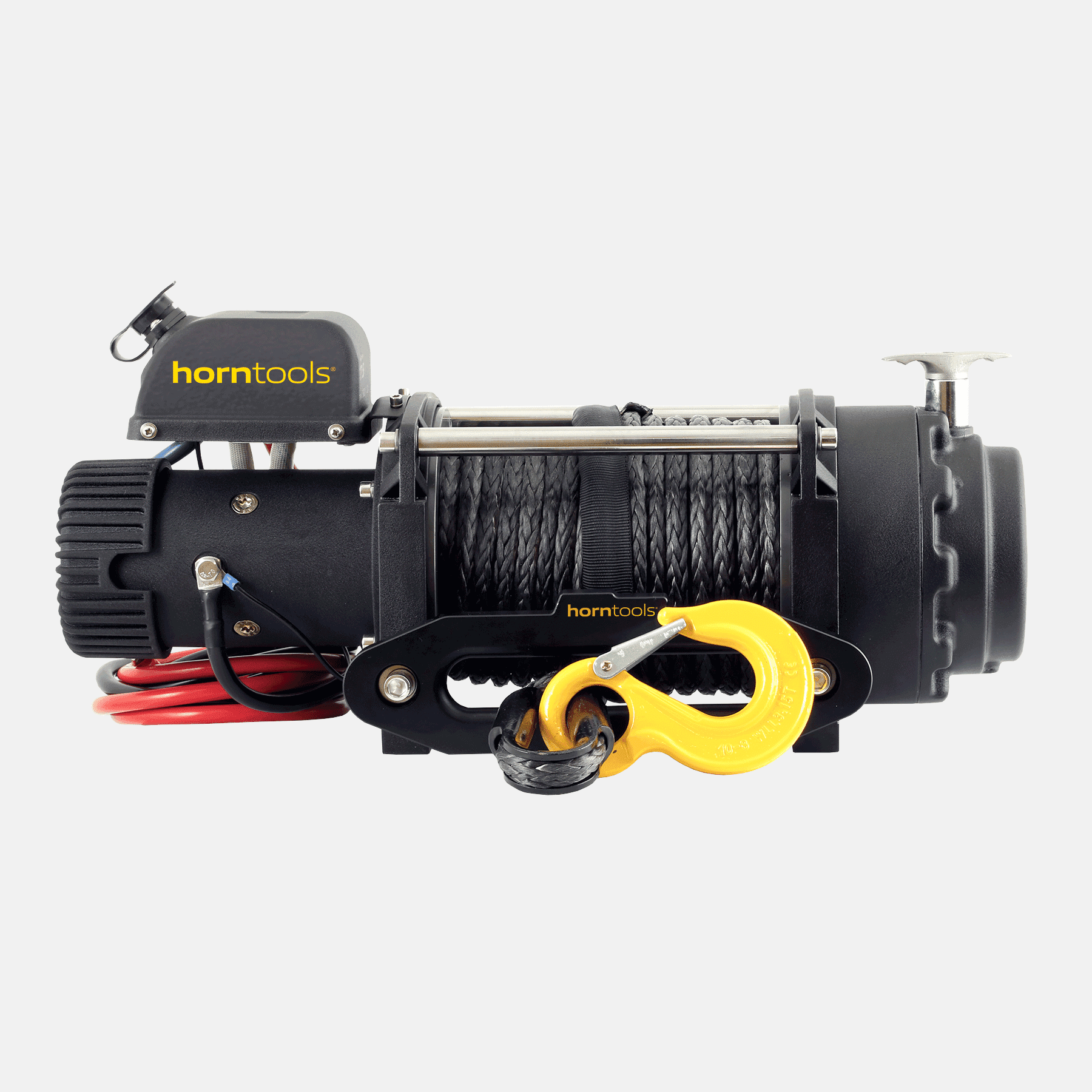

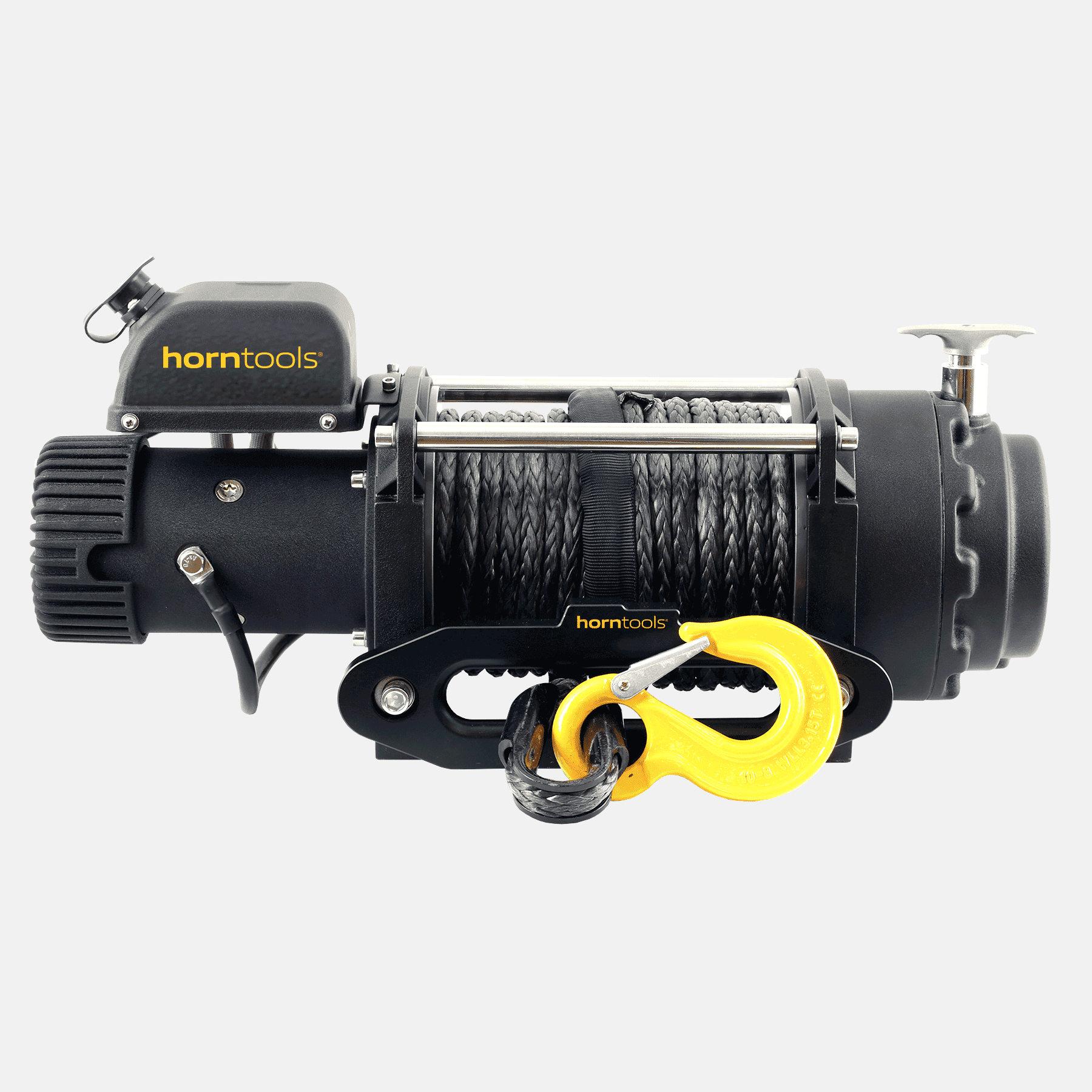

The Sigma 8.0 ton winch is available in the 12 or 24 volt version with either a steel or synthetic cable.

Technical data:

• Motor IP67 sealed by groove with sealing ring
• Freewheel lever
• Stainless steel crossbars
• Reinforced rope drum
• Powder-coated aluminum die-cast housing motor/gearbox
• Internal drum brake with 3 brake shoes
• Removable control unit (so that the control can be installed anywhere)
• Reinforced, powder-coated contractor housing (control box) made of deep-drawn sheet metal
• 3-stage planetary gear
• Pulling force: 8000 kg
• Pulling speed: 6 m/min (measured without load)
• Weight: 85 kg
• Engine type: Series Wound
• Gear ratio: 430:1
• Power consumption: 450 amps
• Voltage: 12/24V

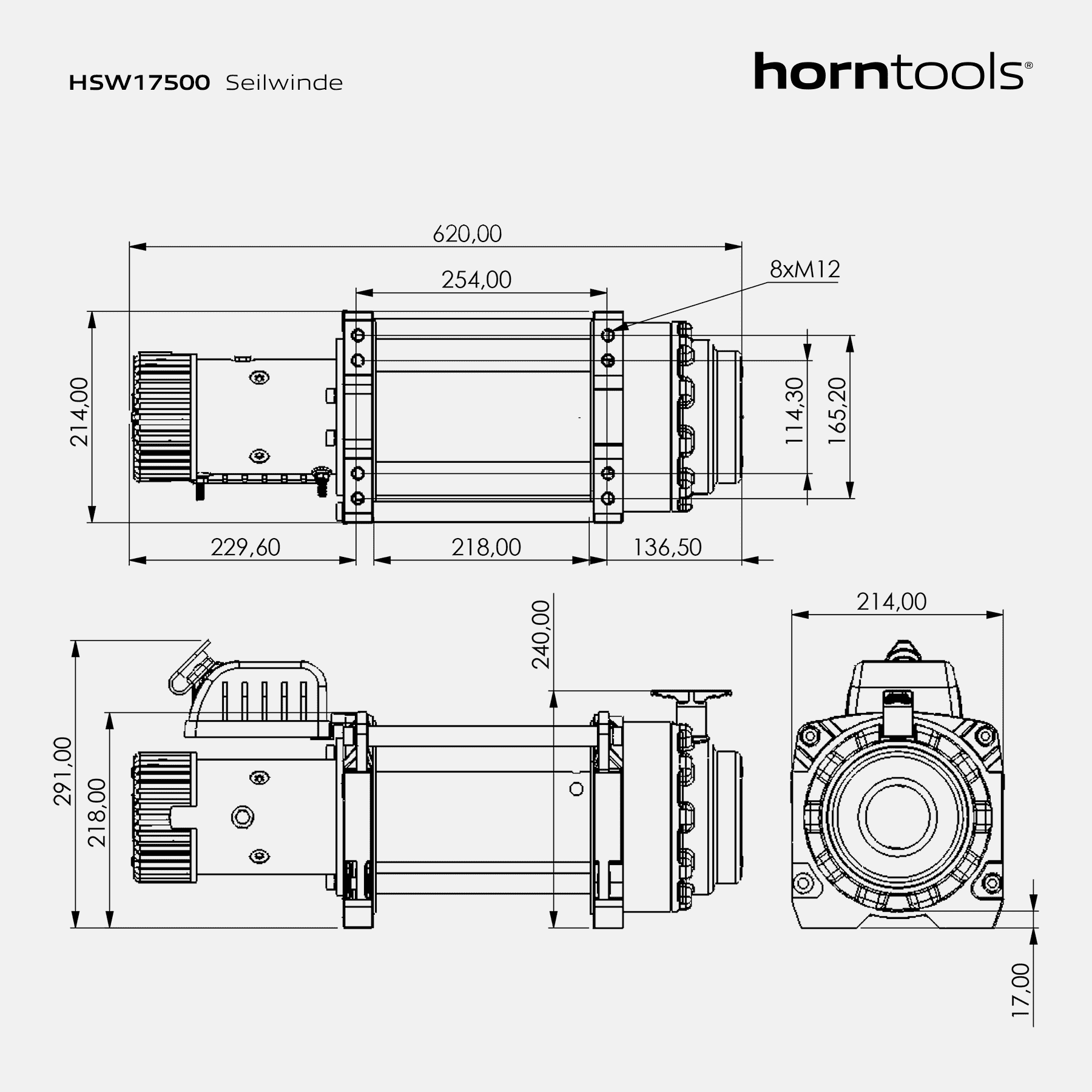

• Overall size (L x W x H): 650 x 214 x 290 mm
• Cable cross section: 35 mm²
• Cable length: 180 cm

Scope of delivery:

• Winch
• Roller cable window
• Steel/synthetic rope with hook
• Fastening screws
• Cable remote control
• Operation manual
